OMNIWISE AI BOX
Blue-ONX16
OMNIWISE AI BOX
Blue-ONX16

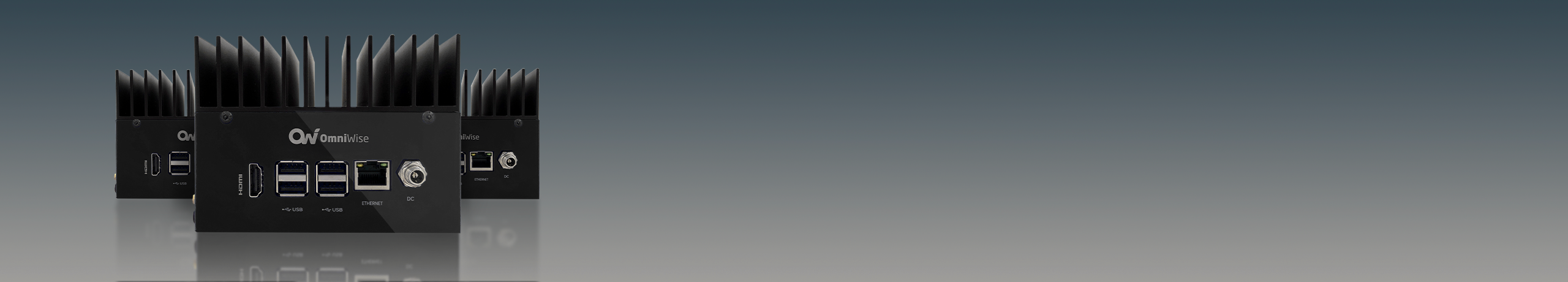

The OmniWise AI Box Blue-ONX16, stands out as a dependable and robust AI inference solution. This fanless edge AI system offers flexible expansion capabilities, including support for 4 × USB 3.2 ports, allowing for the connection of up to 4 × USB cameras. It’s equipped with a variety of I/O and expansion possibilities, catering to diverse AI deployment requirements. At its core, the device is powered by an NVIDIA Jetson Orin NX, achieving up tp 100 TOPS of AI computing performance, and it’s compatible with the NVIDIA Jetson Orin Nano module as well. Both configurations provide the necessary bandwith and power to enhance and scale vide inputs for edge AI inference tasks efficiently.
- Support NVIDIA Jetson Orin™ NX and Orin Nano™ module
- 4 x USB 3.2 Gen1(5G) type A
- 1 x RJ-45 GbE port
- 40 pin (1× UART, 2× SPI, 2×I2C, 1×I2S, 6× GPIO)
- Wide input voltage range from 9 to 24V DC
- Operating Temperature -0°C ~ +70°C
- Fanless Design
Overview
Utilizing the NVIDIA Jetson Orin NX Module, the OmniWise AI Box offers an optimal solution for managing embedded IoT applications. Tailored for tasks like video analytics, robotics, and natural language processing, the OmniWise AI Box is adept at handling diverse applications. With a capacity to drive up to 100 TOPS, it delivers unparalleled AI performance and power efficiency, enhancing the capabilities of your projects significantly.
| Jetson Module | Jetson Orin Nano – Orin NX |
|---|---|
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 tensor cores |
| Memory | 4GB 64-bit LPDDR5 8GB / 16GB 128-bit LPDDR5 |
| MISC / IO Connector | 1x UART, 2x SPI 2x 12C, 1x I2S, 6x GPIOs |
| DL Accelerator | 2x NVDLA v2.0 |
| Display Output | 1x HDMI 2.0 |
| Networking | 1x 10/100/1000 Base-T RJ45 |
| Storage | 1x NVME M.2 M-Key SSD – 2280 |
| Operating Temperature | 0°C to +70°C |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 12x 1080p30 (H.265) H.264, AV1 |
| AI Performance | 100 TOPS (INT8) |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| Dimensions | 120mm(L) x 92mm(W) x 90mm(H) |
| USB | 1x USB 2.0 Micro-B for recovery 4 x USB 3.2 Gen 1 (5G) Type A |
| Power Configuration | 10W – 25W |
| Camera Inputs | 1x MIPI CSI-2 15 Pin |
| Wireless | 1x M.2 E-Key – 2230 |
| Input Power | 9 to 24V DC Input |
| Weight | 875g (Including Antenna) |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 9x 1080p60 | 18x 1080p30 (H.265) H.264, VP9, AV |
| Number | Name | Description |
|---|---|---|
| 1 | Heatsink | Passive Heatsink |
| 2 | Case | 120mm(L) × 92mm(W) × 90mm(H) – 875g (Including Antenna) |
| 3 | HDMI Port | HDMI (3840 × 2160 at 60Hz) |
| 4-5 | USB Port | 4 × USB 3.2 Gen1 (5G) type A |
| 6 | Ethernet Port | GbE RJ-45 |
| 7 | DC Port | Voltage Range 9V-24V |
| 8 | Operating Temperature | -0°C ~ +70°C |
| 9 | Multi- I/O Port | 40-pin (1× UART, 2× SPI, 2× I2C, 1× I2S, 6 GPIO) |
| 10 | Micro USB Port | USB 2.0 Micro-B |
| 11 | Force Recovery Button | Button For Recovery Mode |
| 12 | Power Button | Button for Power |
| 13 | CSI Port | 2 Lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector |
| 14 | Antenna Port | Antenna Port |
