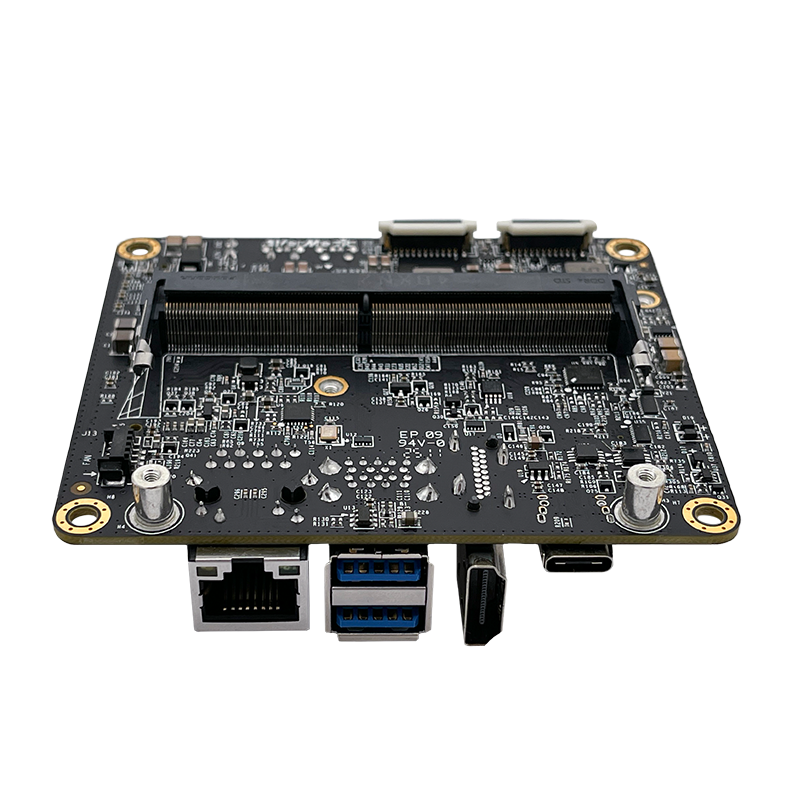

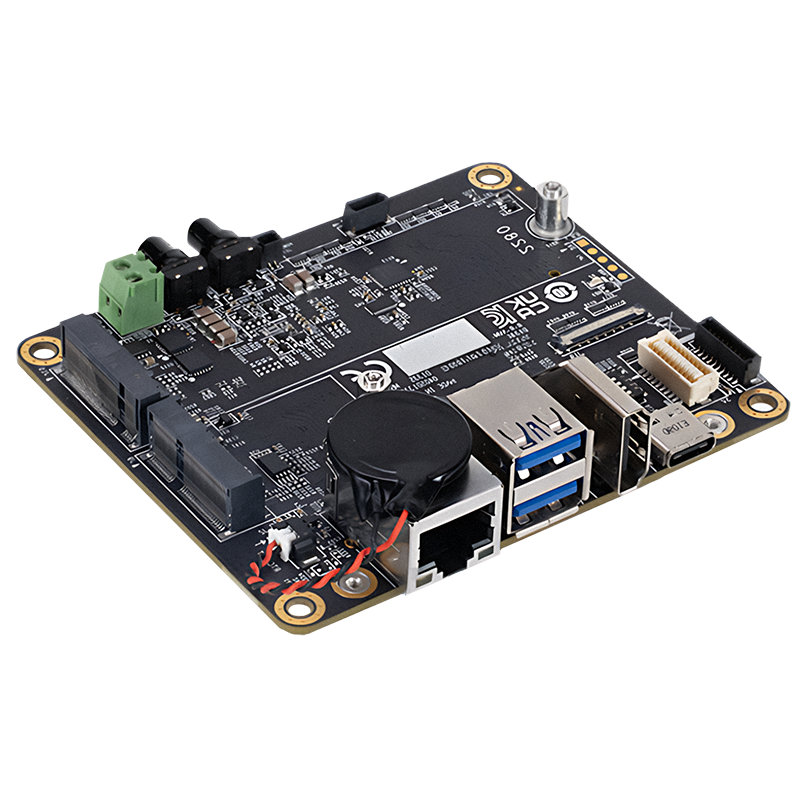

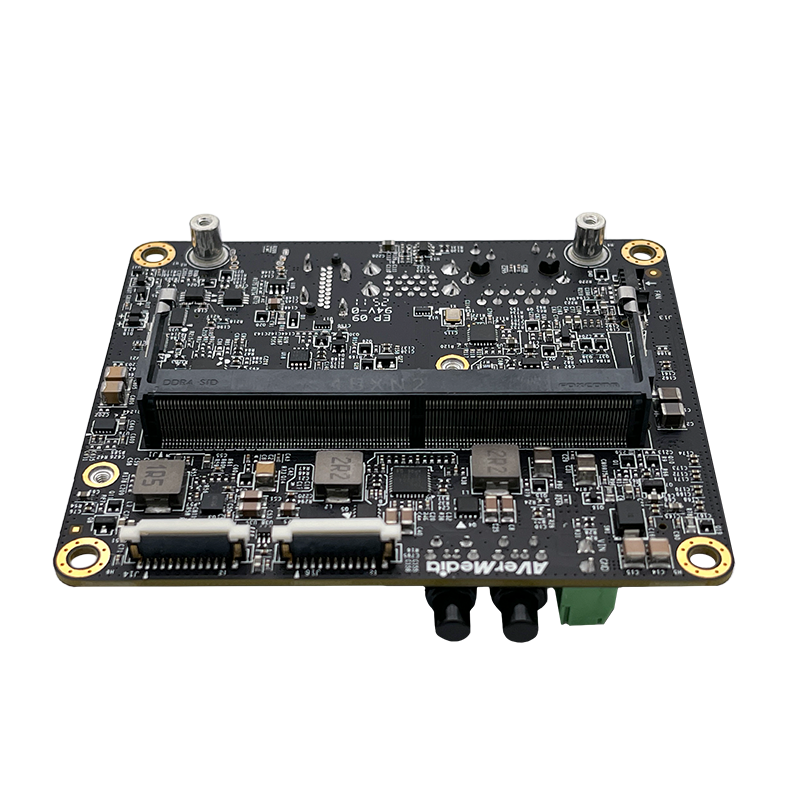

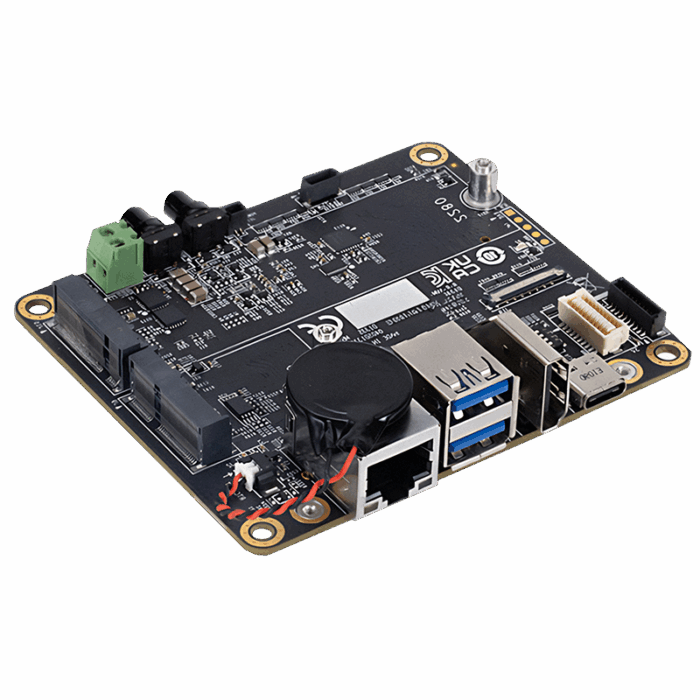

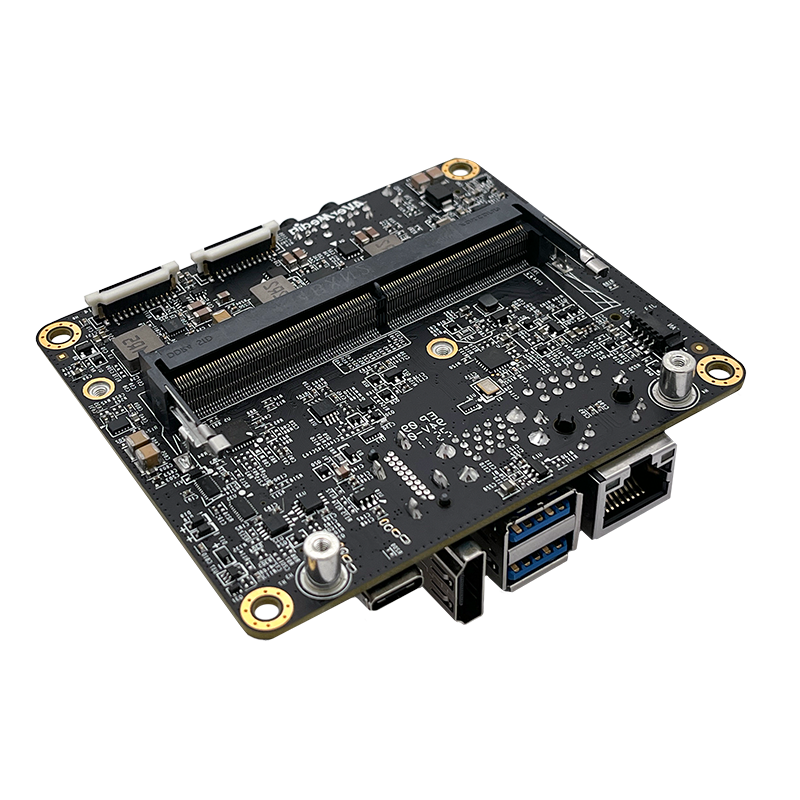

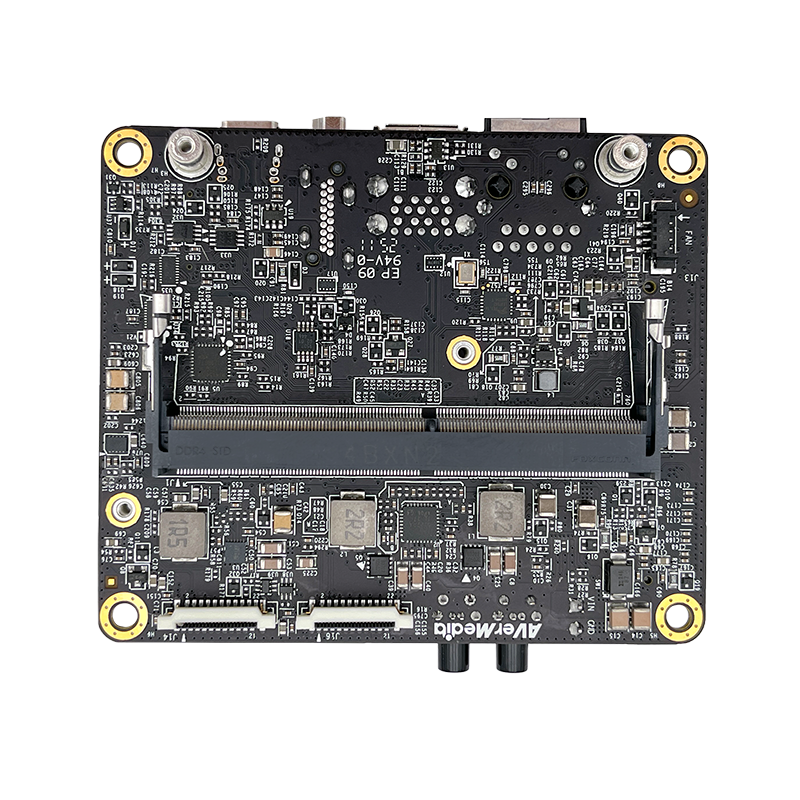

AverMedia D133S Carrier NVIDIA Jetson Orin NX, Orin Nano

The AVerMedia D133S is designed as an industrial-grade carrier board compatible with NVIDIA Jetson Orin NX and Orin Nano modules. This board provides an ideal foundation for the rapid development of embedded AI solutions and their seamless integration into field applications. Despite its compact size, the D133S is a powerful IoT and Edge AI platform with rich connectivity and expansion options.

Key Features

NVIDIA Jetson Module Compatibility: Fully compatible with NVIDIA Jetson Orin NX and Orin Nano modules, enabling optimal utilization of their high-performance AI processing capabilities.

Super Mode Support: Provides Super Mode support for Orin Nano and Orin NX modules, maximizing performance to handle more complex AI workloads.

Rich Connectivity Interfaces: The board features one HDMI output, one Gigabit Ethernet (RJ-45) port, two USB 3.2 Type-A ports, and M.2 slots for SSD and Wi-Fi modules.

Camera and Sensor Support: Supports high-speed image and sensor data acquisition with two 4-lane MIPI CSI-2 camera inputs, providing advantages for smart city, retail, and security applications.

Expansion Capabilities: Provides access to additional communication protocols such as GPIO, I2C, and UART via a 20-pin expansion header; optional daughter boards can be connected for modem functions such as 4G/5G, depending on requirements.

Rugged Industrial Design: Delivers reliable performance in harsh industrial environments with an operating temperature range of –40°C to 85°C and a design resistant to high humidity conditions.

Security and Power Management: Enhances system security with TPM 2.0 support, while contributing to application stability and data integrity with a wide input voltage range (9V–24V) and an RTC-backed real-time clock.
