- Super Mode Support
- Compatible with Orin Nano / Orin NX modules
- 2 x GbE RJ-45
- 2x 4-Lane MIPI CSI-2 camera outputs

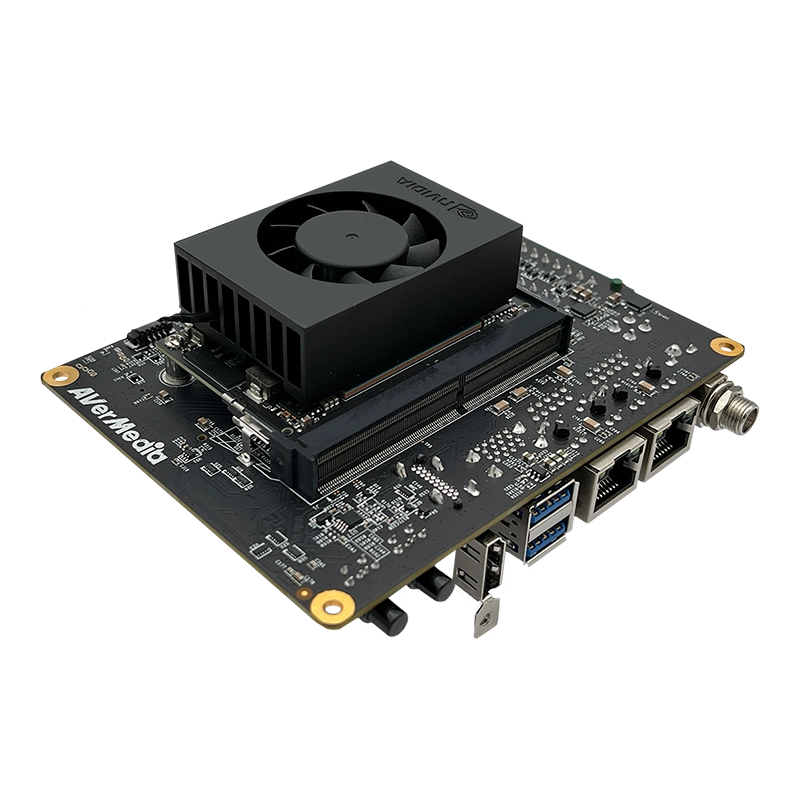

D115S Jetson Orin Nano 8GB AI Kit
Out of stock
SKU: D115S-JON8GB-KIT
Category: Ready-to-Use AI Kits
Tags: AVerMedia AI Kits, D115S Kit, jetson orin nano, Jetson Orin Nano AI Kits
Description
AVerMedia D115S is compatible with NVIDIA Jetson Orin NX 8GB/16GB and Orin Nano 4GB/8GB modules and delivers maximum AI performance with Super Mode support.
.
Hardware Features
- Jetson Module Support: NVIDIA Orin NX / Orin Nano | Super Mode support
- Camera Inputs: 2x 4-Lane MIPI CSI-2
- Display Output: 1x HDMI (4K @ 60 Hz with Orin NX, 4K @ 30 Hz with Orin Nano)
- Connectivity & USB:

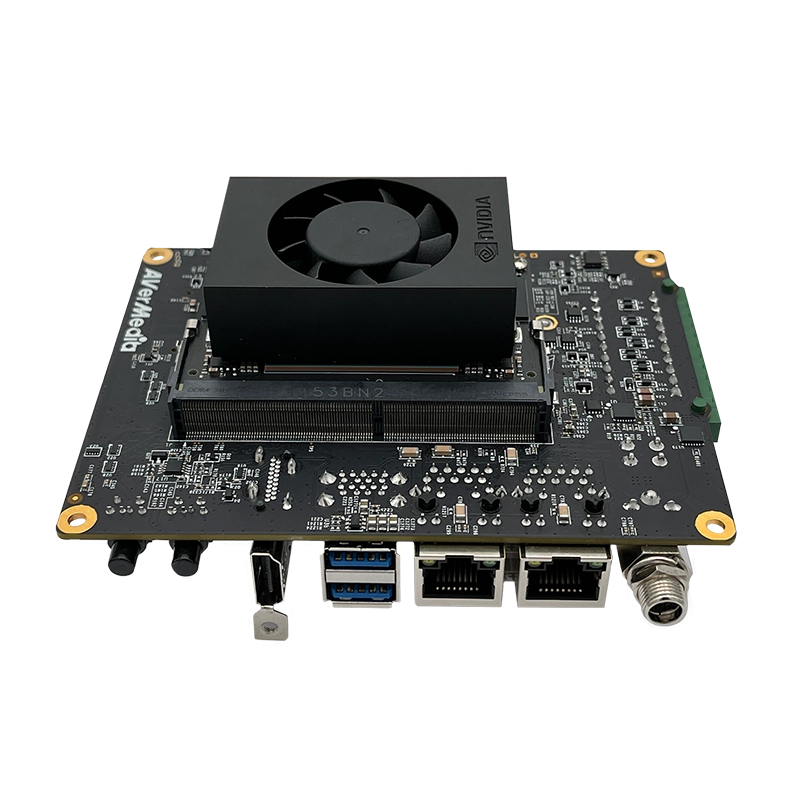

2x Gigabit Ethernet RJ-45 (Ethernet 1 with PoE support, Ethernet 2 with NC-SI support for OOB)
1 × USB Type‑C (recovery)
2x USB 3.2 Type-A (native 10 Gbps per port) - Storage & Expansion:
1 × M.2 key‑M 2280 NVMe SSD
1x M.2 Key E 2230 Wi-Fi/BT module

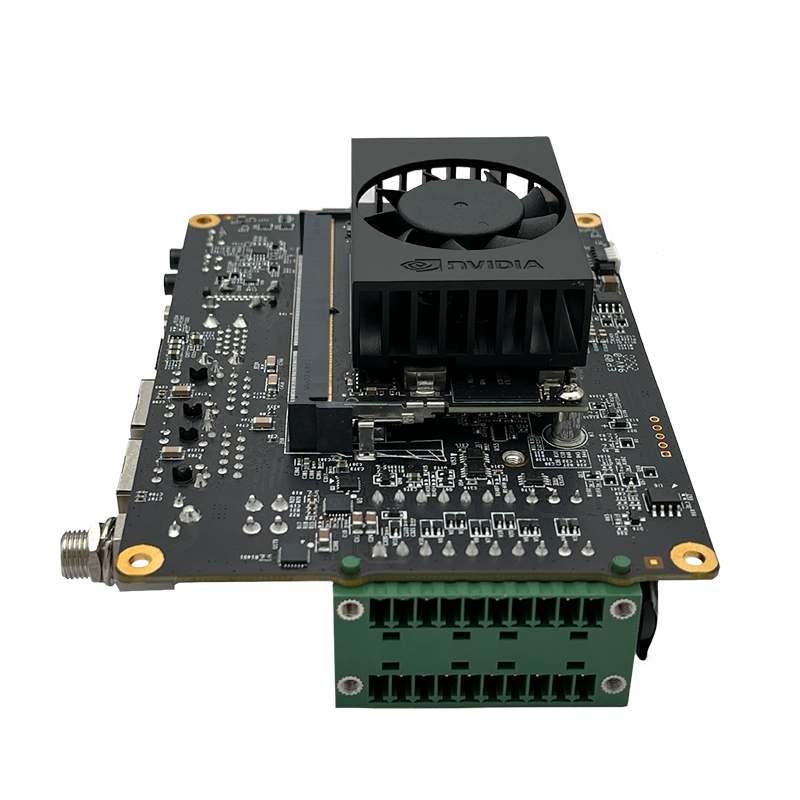

20-pin expansion header (2x I²C, 2x UART, 4x GPIO, 1x CAN via EU terminal block)
40-pin header (supports 4G/5G/capture card functionality with an optional daughter board)
15-pin and 10-pin headers are optional for OOB module support - Security: TPM 2.0 support
- Power: Recommended 9V-24V range, 12V / 5A DC input and ATX 4-pin power input

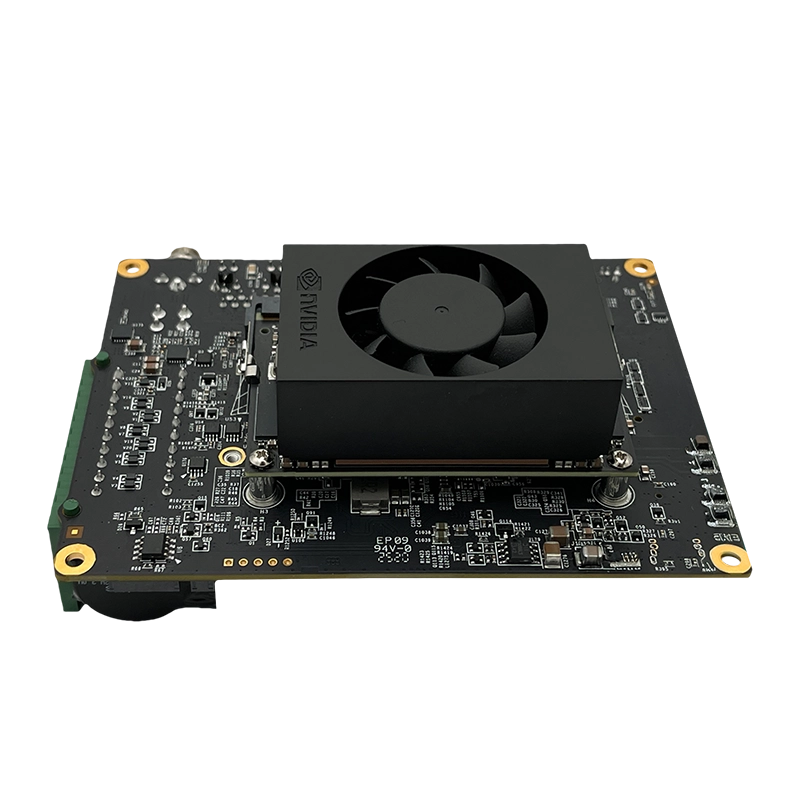

- Thermal Solution: Optional heatsink and fan support
- Buttons: Power and Recovery buttons
- RTC: RTC battery support via MCU with battery life monitoring system
- Operating Environment: -40°C to 85°C; 95% non-condensing humidity at 40°C
- Physical Dimensions: Approx. 126 mm x 96 mm x 26.5 mm; 125 g (TBD)
- Compliance: CE, FCC, VCCI, KC certifications (TBD)
Brand
AverMedia
Carrier Board Specifications
| Parameter | Technical Details |
|---|---|
| Model | D115S |
| Module Compatibility | NVIDIA® Jetson Orin NX 8GB/16GB NVIDIA® Jetson Orin Nano 4GB/8GB |
| Super Mode | Supported |
| Networking | 2× GbE RJ-45 (Optional: Ethernet 1 supports PoE*; Ethernet 2 can be used with OOB management for NC-SI function)** 1× M.2 Key E 2230 slot (for Wi-Fi) |
| Display Output | 1x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano |
| Temperature | Operating temperature: -40°C ~ 85°C Storage temperature: -40°C ~ 85°C Relative humidity: 95% @ 40°C, non-condensing |
| Camera Inputs | 2x 4-lane MIPI CSI-2, 22-pin FPC 0.5mm pitch connector |
| USB | 1× USB 2.0 Type-C (for recovery) 2× USB 3.2 Type-A (native 10 Gbps per port) |
| Storage | 1× M.2 Key M 2280 slot (for NVMe SSD) |
| Expansion Headers | 20-pin: 2× I2C, 2× UART, 4× GPIO, 1× CAN (EU terminal block)*** 40-pin: Supports 4G/5G and capture card functions via optional add-on board (sold separately) 15-pin & 10-pin: Optional OOB module support (sold separately) |
| Power Requirements | On-board DC input jack and ATX 4-pin connector 12V/5A power input, recommended input range: 12V ~ 24V |
| Thermal Solution | Heatsink with fan (optional) |
| Buttons | Power and Recovery |
| RTC Battery | RTC battery support with MCU-based battery life monitoring |
| PCB / Mechanical Specifications | Dimensions: 126 mm (W) × 96 mm (D) × 26.5 mm (H) Weight: 125 g |
| Certifications | CE, FCC, VCCI, KC |
