AVerMedia D131SOXB is a high-performance Edge AI system that brings the NVIDIA® Jetson Orin™ NX platform into a compact, industrial-grade Box PC form factor. With multi-MIPI camera support, high-speed USB connectivity, M.2 expansion options, and a wide operating temperature range, it provides a powerful development and deployment platform for applications such as image analysis, smart security, robotics, and industrial AI.

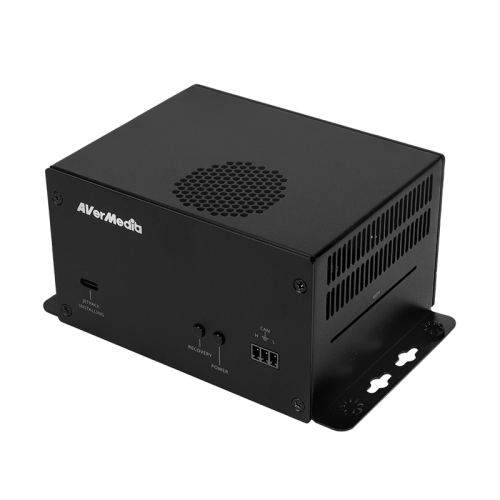

D131SOXB Orin NX 16GB Box PC
- Description
- Additional information
- Brand
- D131SOXP Datasheet
- Jetson Orin NX Datasheet
- User Manual
- Box Content
Description
AVerMedia D131SOXB – NVIDIA Jetson Orin NX Tabanlı Endüstriyel Edge AI Box PC
.AVerMedia D131SOXB is a compact and high-performance Edge AI Box PC solution built on the NVIDIA® Jetson Orin™ NX module. Designed for advanced image processing, real-time analytics, and low-latency artificial intelligence applications, the system provides a powerful infrastructure for robotics, smart city solutions, vision-based automation, and industrial IoT projects.
Despite its compact form factor, the D131SOXB offers a rich range of connectivity options; with multi-camera integration, high-speed data transfer, and an expandable architecture, it accelerates product development processes. Combined with the high AI performance of the NVIDIA Jetson Orin NX, the system processes data at the edge, reduces dependency on the cloud, and supports real-time decision-making mechanisms.
Thanks to the 2 2-lane and 1 4-lane MIPI CSI-2 camera interfaces on the D131SOXB, multiple image sources can be used simultaneously. This architecture is ideal for applications such as object detection, image classification, quality control, and environmental analysis.

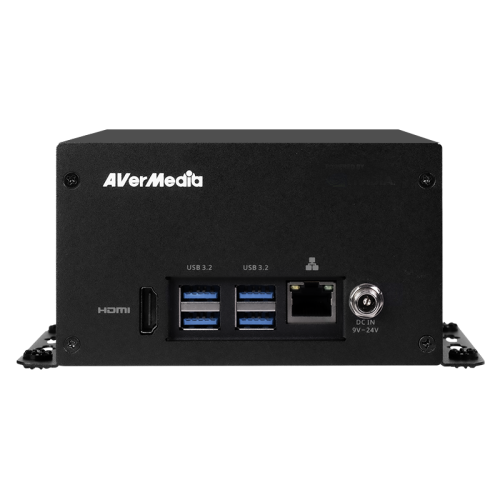

On the connectivity side, it supports 4 USB 3.2 ports, Gigabit Ethernet (optional PoE), HDMI 4K display output, M.2 SSD, and Wi-Fi expansion, enabling compatibility with a wide range of use cases. In addition, with Allxon support, remote device management and OTA (over-the-air) operations can be enabled.
Key Features
• Support for NVIDIA® Jetson Orin™ NX (8GB / 16GB)
• Industrial-grade Edge AI Box PC design
• 2× 2-lane + 1× 4-lane MIPI CSI-2 camera support
• 4× USB 3.2 Gen 1 high-speed ports
• 1× Gigabit Ethernet (optional PoE)
• 1× HDMI 4K@60Hz display output
• M.2 SSD and Wi-Fi expansion support
• 40-pin expansion header (UART, SPI, I²C, I²S, GPIO)
• Wide input voltage support (12–24V DC)
• Operating temperature range: 0°C ~ 60°C
• Allxon-enabled remote device management
Use Cases
• Edge AI and real-time inference systems
• Smart camera and video analytics solutions
• Robotics and autonomous systems
• Smart city applications
• Industrial automation and quality inspection
• Retail analytics and vision-based decision-making systems
Additional information
| Product Model | D131OXB |
|---|---|
| Module Compatibility | NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB |
| Ethernet | 1x GbE RJ-45 (PoE option) |
| Expansion | M.2 Key E 2230 x 1 for WiFi |
| Video Output | 1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano |
| Temperature | Operating temperature 0°C~60°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
| USB | 1x USB 2.0 Micro-B for recovery, 4 x USB 3.2 Gen 1 Type A (Total Bandwidth: 5Gbps) |
| Storage | 1x M.2. key M 2280 for NVMe (256G SSD installed in box PC) |
| Expansion Header (Internal) | 1xOOB supported by Allxon, 40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, GPIOs |
| Input Power | 12V/5A, 9V~24V is recommended., DC in jack on board & ATX 4-pin |
| Power Cord | US/JP/EU/UK/TW/CN/AU |

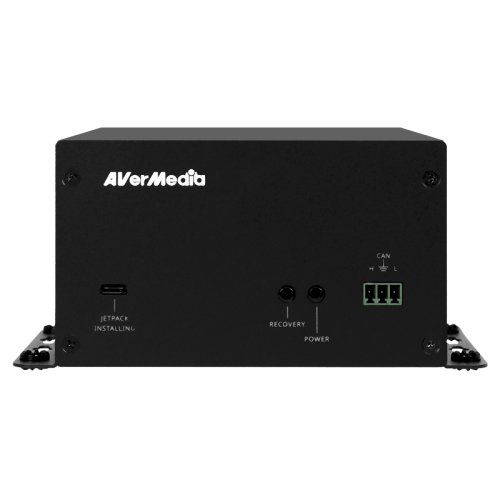

| Button | 1x recovery, Power |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| Dimension | 113mm x L: 101.4mm x H: 57.8mm |
| Weight | 670g |
| Certification | CE, FCC, VCCI,KC (TBD) |
Brand
AverMedia
D131SOXP Datasheet
Jetson Orin NX Datasheet
User Manual
Box Content
• D131SONX 16GB Edge AI Box PC
• 19V power adapter
• 500 GB SSD
• Stick antenna for wireless connectivityc
