Description

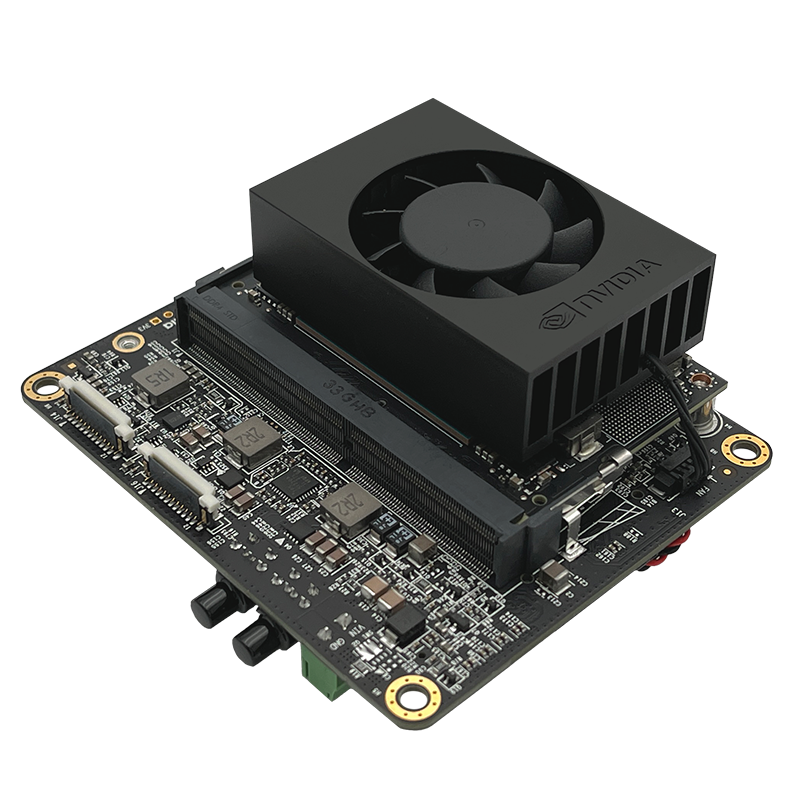

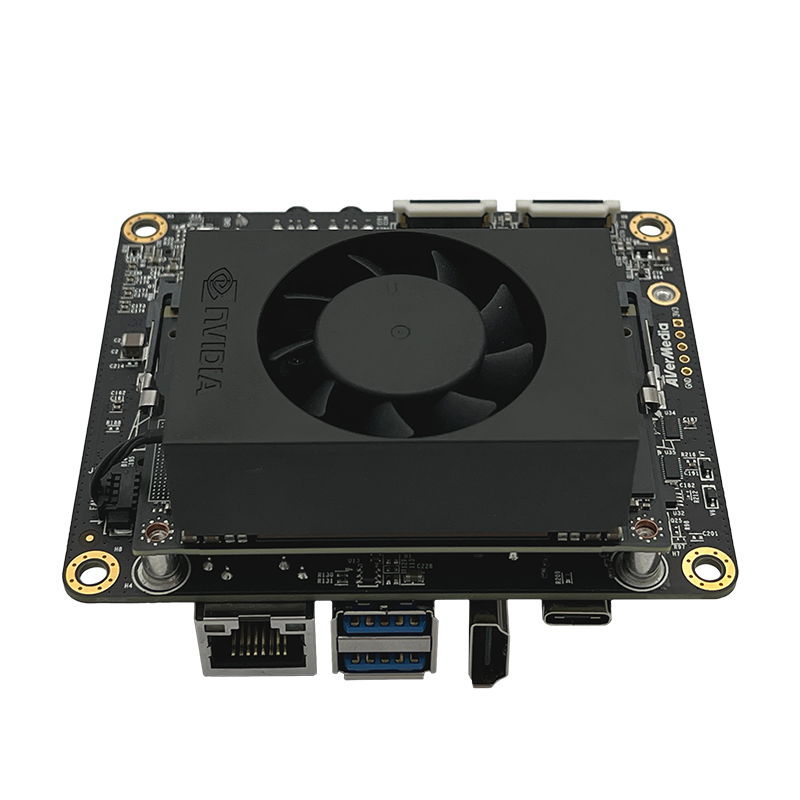

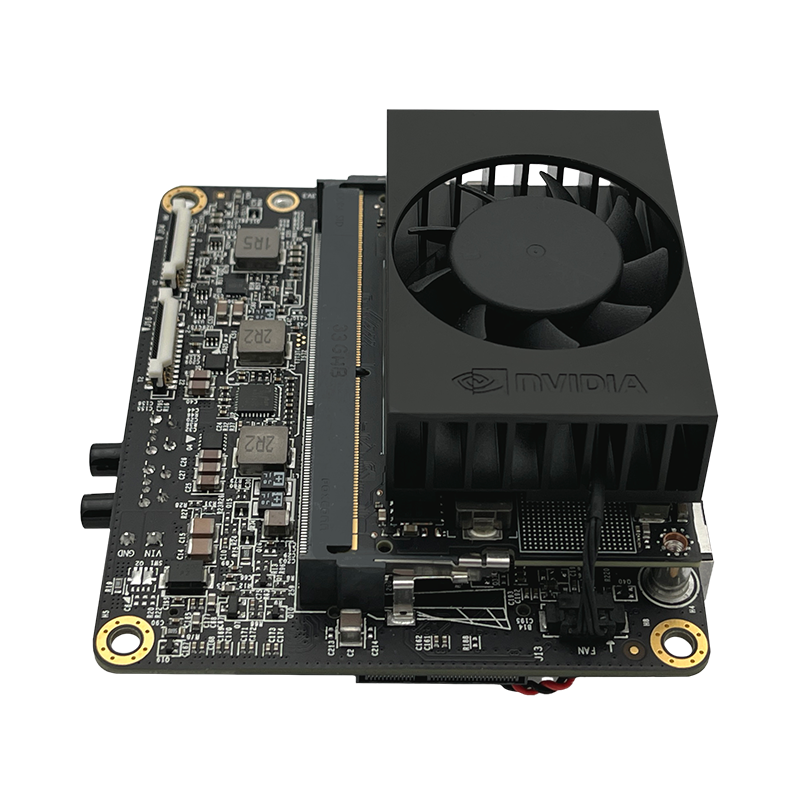

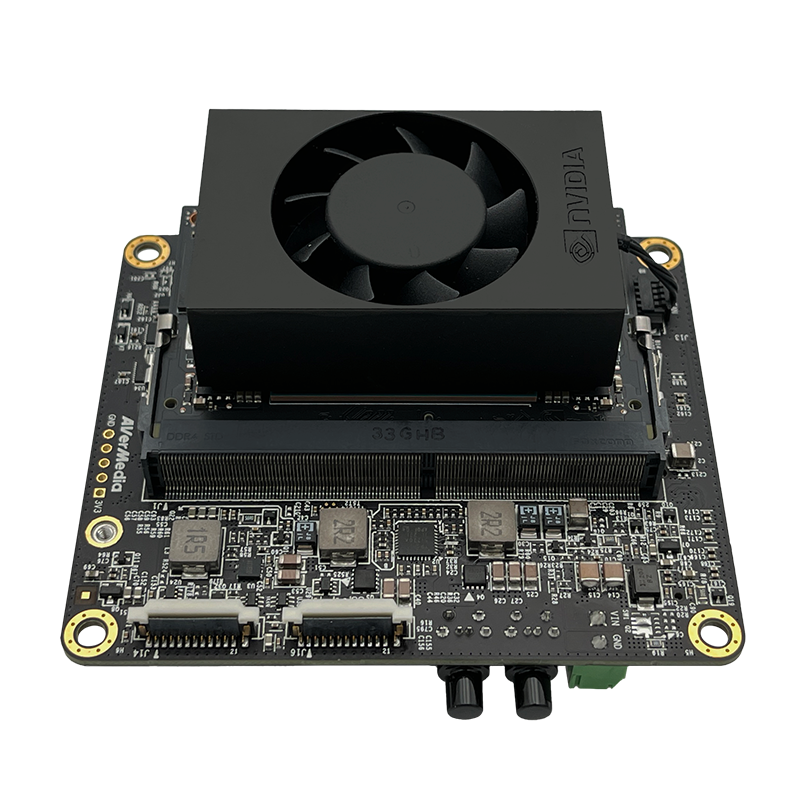

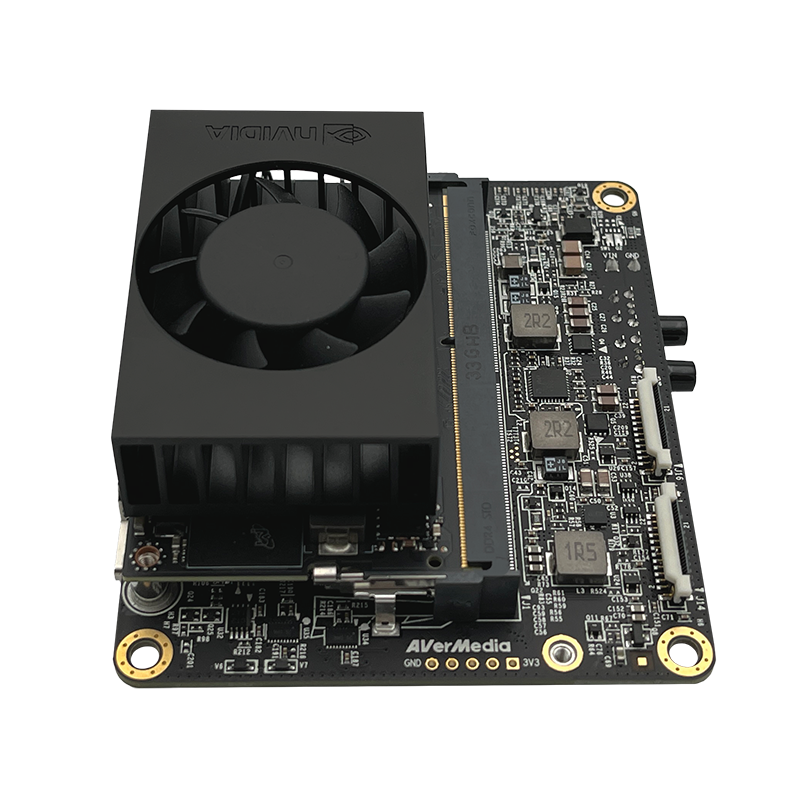

The AVerMedia D133 carrier board is designed for NVIDIA Jetson Orin Nano / Orin NX modules. D133 delivers advanced AI performance for autonomous machines.
Its wide operating temperature range (-40°C ~ 85°C) also makes it ideal for workloads that require rugged operation.
Carrier Board Specifications
| Module Compatibility | Jetson Orin Nano / Orin NX |
| Networking | 1x GbE RJ-45 1x M.2 Key E 2230 - for Wi-Fi |
| Display Output | 1x HDMI 3840 x 2160 at 60Hz - Orin NX 30Hz - Orin Nano |
| Operating Temperature | -40°C ~ 85°C |
| Storage Temperature | -40°C ~ 85°C |
| MIPI Camera Inputs | 2x 4-lane MIPI CSI-2, 22-pin connector |
| USB | 1x USB 2.0 Type-C 2x USB 3.2 Type-A |
| Storage | 1x M.2 Key M 2280 - for NVMe |
| Expansion | 20-pin: 2x I2C, 1x UART, 9x GPIOs |
| Power | 12V/5A, 9V~24V |
| Buttons | Power and Recovery |
| RTC Battery | RTC battery and battery life monitoring support via MCU |
| Dimensions and Weight | 90mm x 76mm 70g |
