Home » Catalog » D317 NVIDIA Jetson AGX Orin 32GB AI Kit

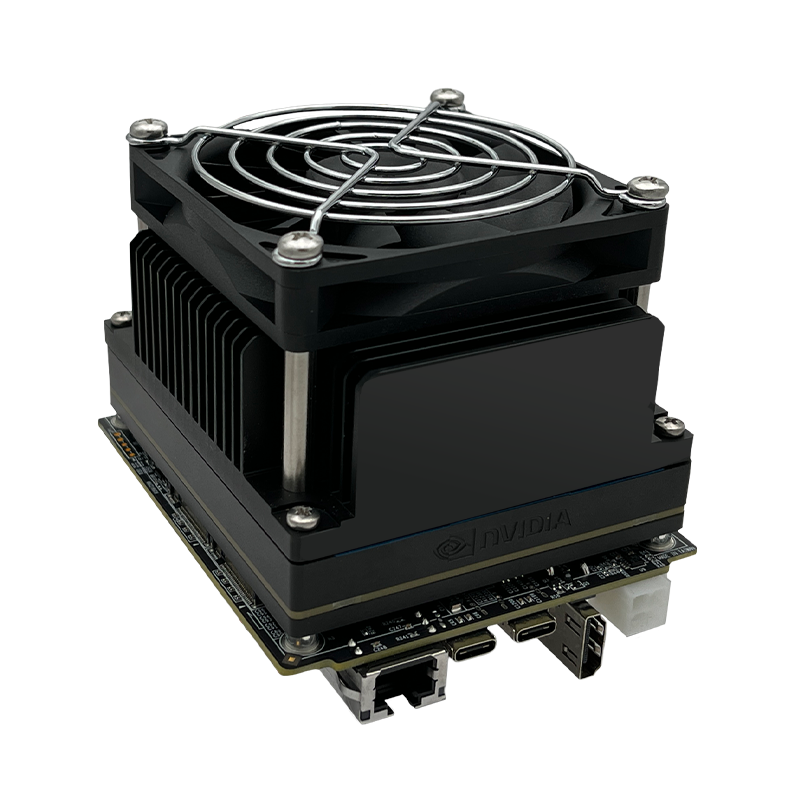

D317 NVIDIA Jetson AGX Orin 32GB AI Kit

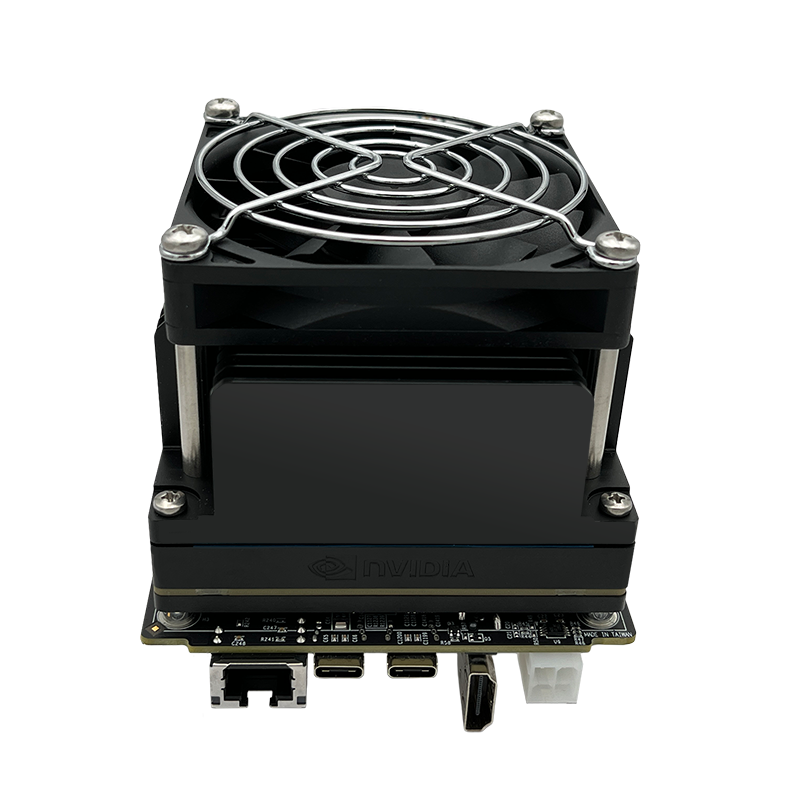

D317 NVIDIA Jetson AGX Orin 32GB AI Kit - Image 2

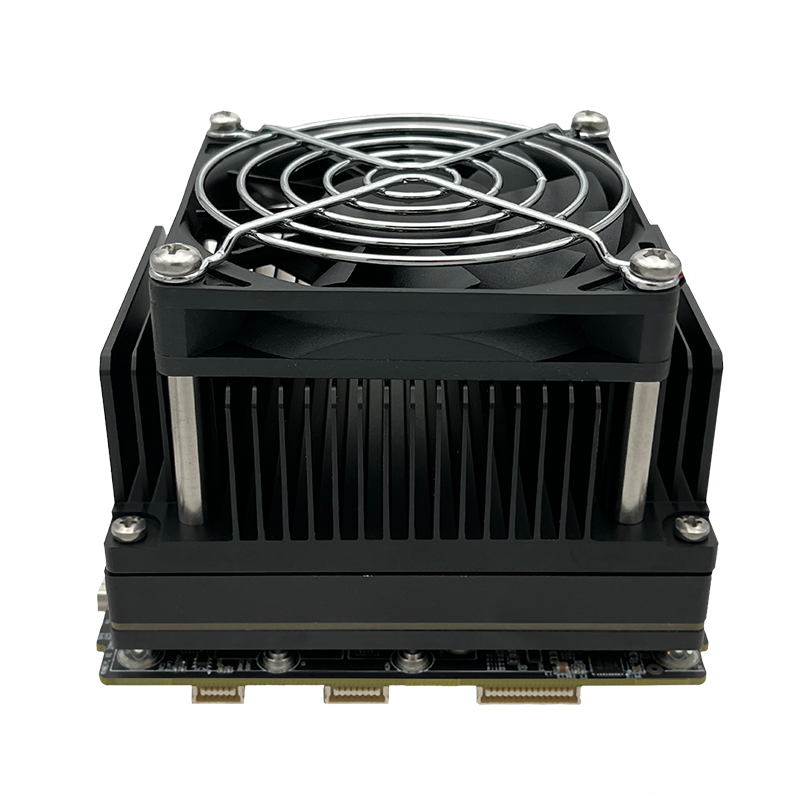

D317 NVIDIA Jetson AGX Orin 32GB AI Kit - Image 3

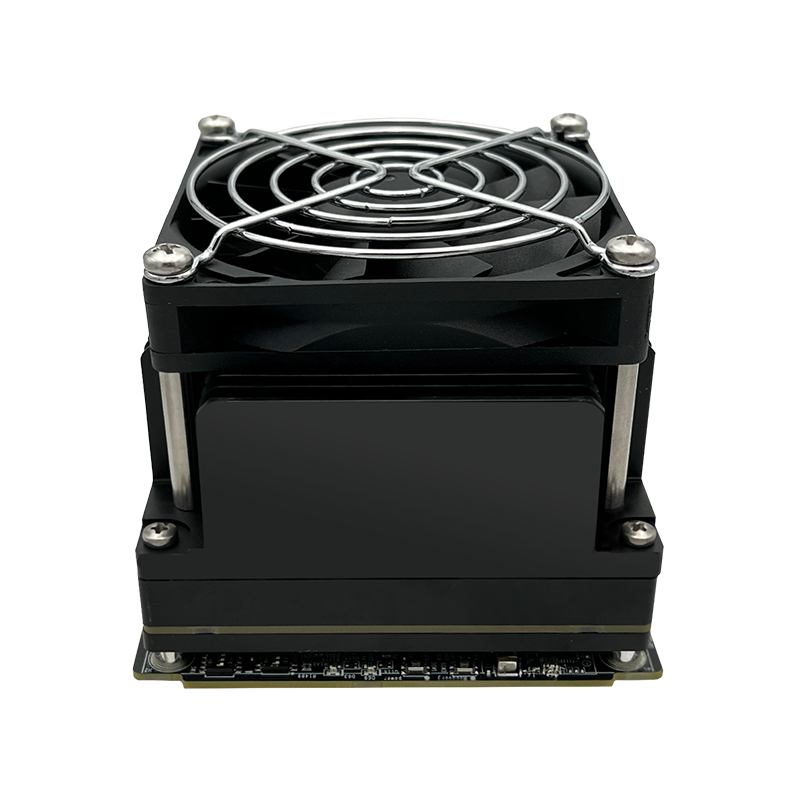

D317 NVIDIA Jetson AGX Orin 32GB AI Kit - Image 4

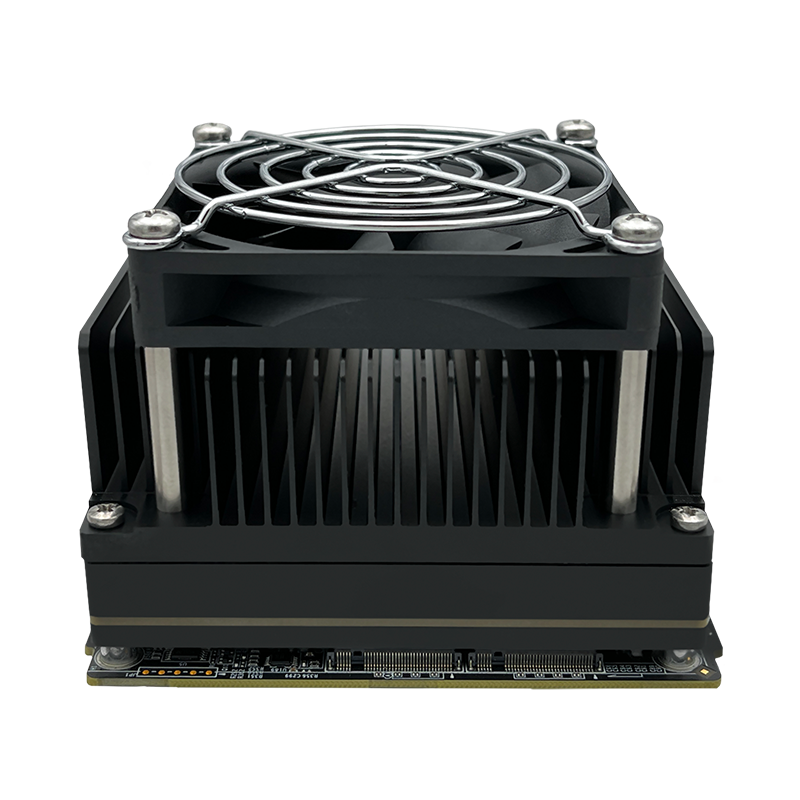

D317 NVIDIA Jetson AGX Orin 32GB AI Kit - Image 5
D317 NVIDIA Jetson AGX Orin 32GB AI Kit - Image 6

D317 NVIDIA Jetson AGX Orin 32GB AI Kit

Out of stock

⚠️ Important Image Notice

Product images are for reference only. The heatsinkshipped with the kit may differ from the model shown in the image depending on stock and supply availability, including differences in design, color, or form.
The supplied heatsink is compatible with the product and provides the required cooling performance.

  • Compatible with NVIDIA® Jetson AGX Orin modules
  • 1x GbE RJ-45
  • 2x NVMe M.2 Key M 2280
  • 1x M.2 Key E 2230 for Wi-Fi 6
  • 1x HDMI 2.0 (3840×2160 at 60 Hz)
  • 1x 120-pin connector for GMSL camera board
  • 1x USB 3.2 Type-C for BSP installation
REQUEST FOR QUOTE
SKU: D317-AO32GB-KIT Category: Tags: , , , OpenZeka Elite Partner

Description

The AVerMedia D317 Carrier Board is a high-performance carrier board compatible with NVIDIA Jetson AGX Orin modules. It is specifically designed to deliver advanced AI processing capability for industrial and embedded IoT applications.

Thanks to its compact design, it can be used comfortably in space-constrained environments. D317 stands out with its flexible input/output (I/O) architecture, making it easier to rapidly develop and deploy AI-based solutions. These capabilities make it a powerful and versatile AI development platform.

Key Features

  • Compatible with NVIDIA® Jetson AGX Orin module
  • 1 × GbE RJ-45
  • 1x M.2 Key E 2230 (Wi-Fi 6 support)
  • 1x HDMI 2.0 (3840×2160 @ 60Hz)
  • 1x 120-pin GMSL camera board connection
  • 1x USB 3.2 Type-C (for BSP installation)
  • Operating Temperature: -40°C to 85°C (carrier board only)
  • Dimensions: 92 mm x 107 mm (Width x Length)

With high-speed connectivity, robust I/O architecture, and Jetson AGX Orin™ support, D317 is purpose-built for demanding edge AI applications. It can be used in areas such as autonomous mobile robots (AMRs), smart security systems, and industrial inspection solutions. Its compact design and expandability make system integration extremely easy. Overall, it is a strong choice for organizations looking to scale AI innovation at the edge.

Brand

AverMedia

Specifications

ParameterTechnical Details
ModelD317
Module CompatibilityNVIDIA® Jetson AGX Orin
Networking• 1 × GbE RJ-45
• 1 × M.2 Key E 2230 (for Wi-Fi 6)
• Optional 2 × 10G RJ-45 (via expansion card)
• Optional 8 × PoE (via expansion card)
• Optional 1 × M.2 Key B (for 5G connectivity, via 5G/PoE/USB expansion card)
Display Output1 × HDMI (3840 × 2160 @ 60Hz)
Temperature• Operating Temperature: -40°C to 85°C (carrier board), -20°C to 70°C (with fan)
• Storage Temperature: -40°C ~ 85°C
• Relative Humidity: 95% at 40°C, non-condensing
Camera Inputs1 × 120-pin GMSL camera board connection
USB• 1 × USB 3.2 Type-C (for BSP installation, supports OTG mode, switches to USB 2.0 when used with PoE/5G expansion card)
• 1 × USB 3.2 Type-C (host mode only)
• Optional 8 × USB 3.2 Type-A (via expansion card)
Storage2 × NVMe M.2 Key M 2280 (only one supports S1 Type SSD with top-side components)
Expansion Headers• 30-pin: 1 × UART, 1 × I2C, 3 × GPIO, 1 × SPI, 2 × CAN BUS, 1 × I2S, 5V (max. 0.7A), 3.3V (max. 0.7A)
• 12-pin: 1 × 12V (max. 0.7A), 1 × 5V (max. 1A), 1 × 3.3V (max. 1A), 1 × USB 2.0, 1 × DMIC
• 16-pin: For OOB or external buttons
– OOB: 1 × UART, 1 × Debug UART, 1 × Power Button, 1 × Reset Button, 1 × Power Detection (via OOB management module)
– External Buttons: 1 × Power Button, 1 × Reset Button, 1 × Recovery Button, 1 × PWR_LED (via external cable)
• 40-pin coaxial connector: For 10G expansion
• 40-pin coaxial connector: For PCIe expansion
GPSOptional Dual RTK GNSS support (via expansion card)
SensorTemperature sensor for measuring the top/bottom PCB temperature
Power RequirementsATX 4-pin, 12V ±5% DC Input
Thermal SolutionFan solution (12V fan connector)
ButtonsPower and Recovery
LED Indicators1 × System Power
1 × Input Power
RTC BatteryRTC battery support and battery life monitoring via MCU
PCB / Electromechanical Information• Width: 92 mm × Length: 107 mm
• Weight: 1 kg
CertificationsCE, FCC, VCCI, KC

D317 Datasheet

Your browser does not support PDFs. Download the PDF.

Jetson AGX Orin Brochure

Your browser does not support PDFs. Download the PDF.
