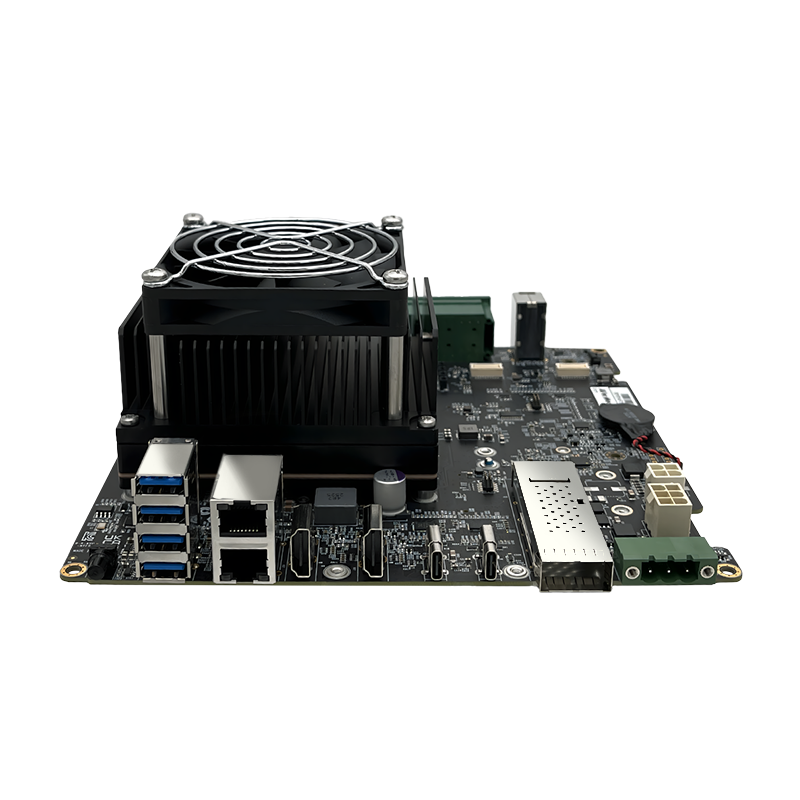

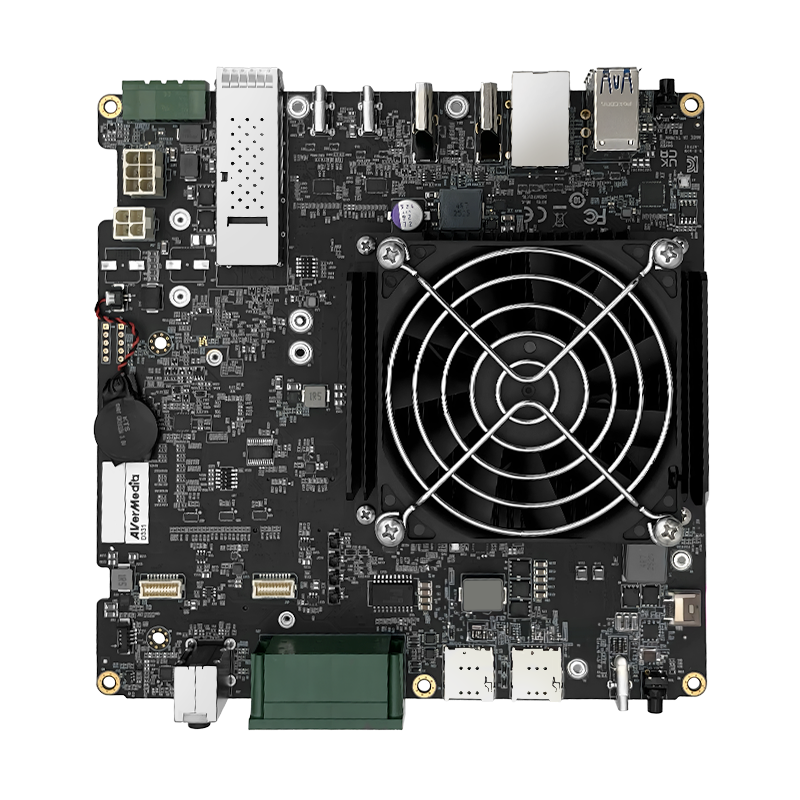

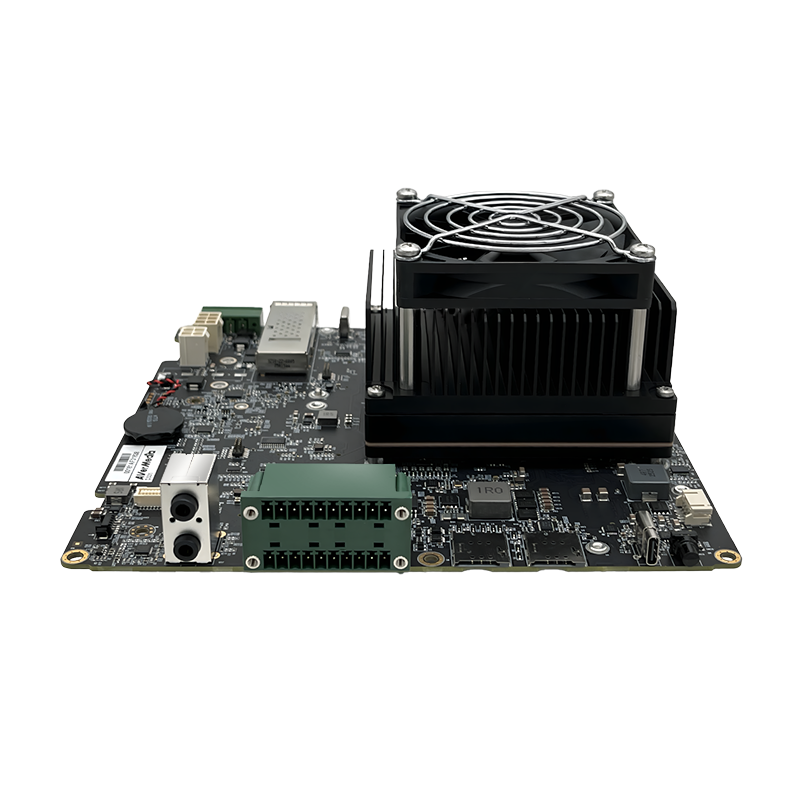

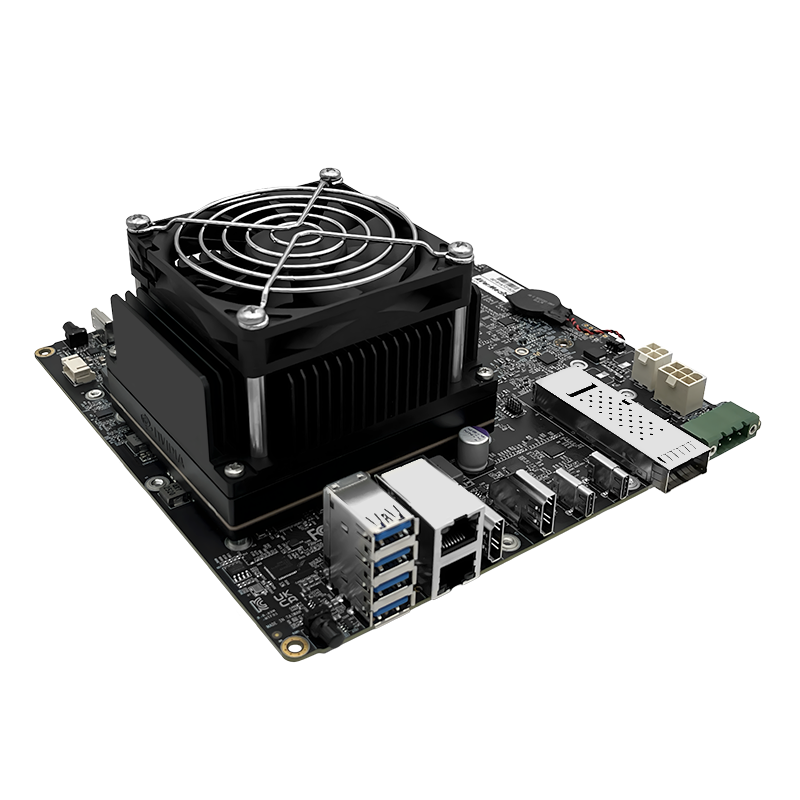

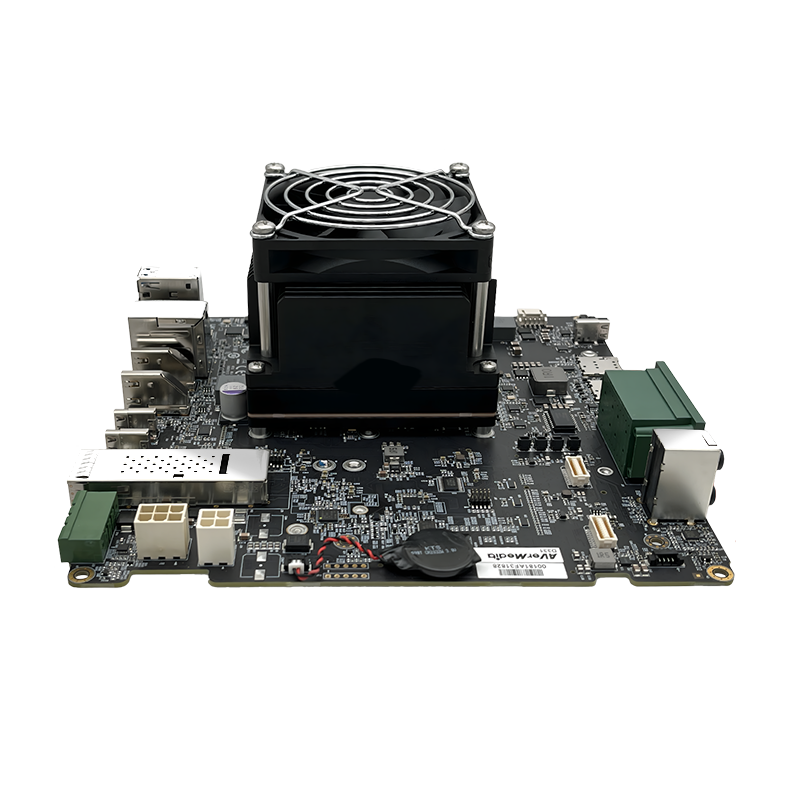

AVerMedia D331 Carrier Board is a compact, industrial-grade platform developed for NVIDIA Jetson T5000™ and Jetson T4000™ modules.
AVerMedia D331 is a high-performance industrial carrier board solution designed for NVIDIA Jetson Thor series modules. Developed for edge AI, robotics, and advanced image analytics applications, the platform enables rapid prototyping and scalable system development with powerful connectivity options and extensive I/O support.
Optimized to efficiently harness the high AI compute performance of the Jetson Thor architecture in industrial environments, D331 enables easy integration of AI systems that operate with multiple sensors and cameras. Its expandable architecture provides a reliable foundation for applications such as robotics, smart city solutions, and autonomous machines.
D331 is designed to provide stable operation even in demanding field conditions thanks to its rich connectivity options and wide operating temperature range. With high-speed network connectivity, NVMe storage support, and a variety of expansion ports, it provides an ideal base platform for advanced edge AI systems.
| Parameter | Technical Details |
| Model | D331 |
| Module Compatibility | NVIDIA Jetson T5000™ / Jetson T4000™ |
| Networking | • 2x GbE RJ-45 (on enclosure, one port NCSI) • 1x QSFP (4× 25 GbE) • 1x M.2 Key E 2230 (for Wi-Fi 6) • 1x M.2 Key B (for 5G) |
| SIM Slot | 2x SIM slots for 4G/5G module, dual-SIM support |
| Display Output | 2x HDMI outputs (3840 × 2160 at 60 Hz) |
| Temperature | • Operating Temperature: -40°C to 85°C (carrier board, without audio) • Operating Temperature: -25°C to 85°C (carrier board, with audio) • Storage Temperature: -40°C to 85°C • Relative Humidity: 95% at 40°C, non-condensing |
| Camera Inputs | 1x 120-pin GMSL camera board connection |
| USB | • 1x USB 3.2 Type-C for BSP installation • 1x USB 3.1 Type-C • 4x USB 3.2 Type-A • Optional 8x USB 3.2 Type-A (via expansion card) |
| Audio | 2x 3.5 mm jacks for microphone input and line output |
| Storage | • 2x NVMe M.2 Key M 2280 • 1x NVMe M.2 Key M 2280 x2 PCIe Gen5 (8x PoE / 8x USB card, either one) • 1x NVMe M.2 Key M 2280 x4 PCIe Gen5 |
| TPM | TI SLB9672XU2.0 onboard |
| Expansion Headers | • 2x10 Euro Terminal Block: 1x CAN-FD (3 kV isolated), 3x CAN-FD with transceiver, +5V output 1A, +3.3V output 1A, UART, I2C • 20-pin Expansion Header 1: 1x 5V (Maximum 1A), 1x 3.3V (Maximum 1A) power output, UARTH1, I2C, GPO (4), GPI (5), PWM (2) • 20-pin Expansion Header 2: 1x 5V (Maximum 1A), 1x 3.3V (Maximum 1A) power output, UARTH2, I2C, GPO (4), GPI (5), PWM (2) • 2x 5-pin JTAG connectors • 1x 40-pin coaxial connector for PCIe expansion (external 8x PSE / 8x USB card) • Samtec 240P board-to-board PCIe x8 / RGMII / VDD_9~12V / USB 3.0 / USB 2.0 / GPIOs / I2C (via expansion card) |
| GPS | 1x mPCIe for optional dual RTK GNSS support |
| Sensor | Temperature sensor for measuring the top/bottom PCB temperature |
| Buttons | Power and Recovery |
| Thermal Solution | • 1x SOM fan • 2x chassis fans (12V fan IC) |
| Power Requirements | • 3-pin and Mini-Fit 6-pin terminal block (internal) • 9~36V DC input • ACC IN / IGN control (ACC optional, via switch) |
| Switches | Power and Recovery |
| LED Indicators | • 1x System Power • 1x Input Power |
| MISC | • 1x Mini-Fit 4-pin DC output (for PSE expansion, 10A pass-through) • 1x DC output IC (9~12V) (for GMSL) • 1x USB-C (for Debug_UART, shared with OOB) • DIP switch (function control, AT/ATX mode selection, ACC Enable / Ignore ACC for Development [default]) |
| RTC Battery | RTC battery and battery life monitoring supported by MCU |
| PCB / Electromechanical Information | • Width: 190 mm × Length: 190 mm |
| Certifications | CE, FCC, VCCI, KC |
