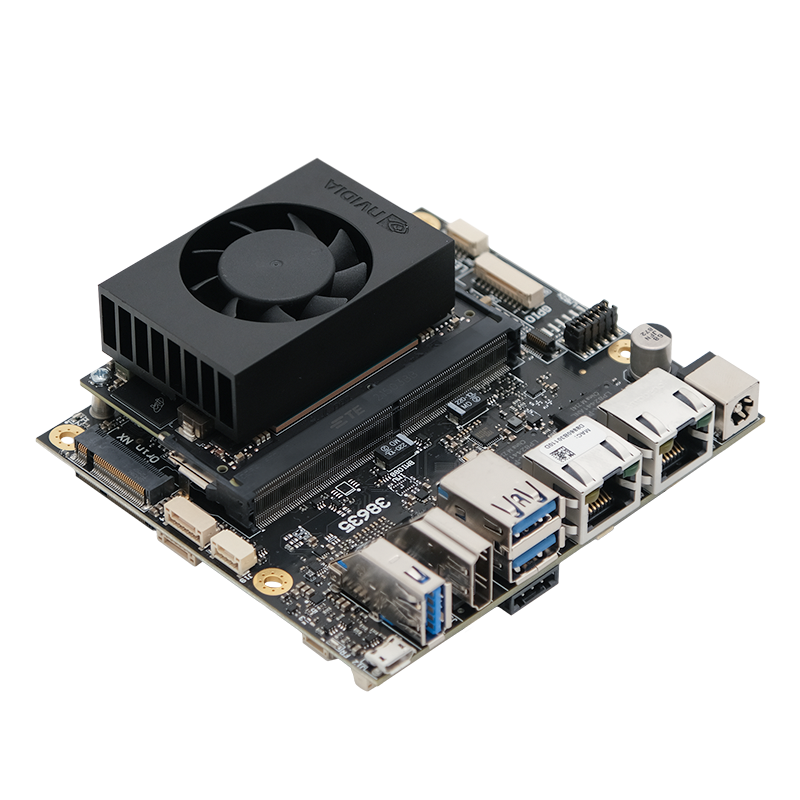

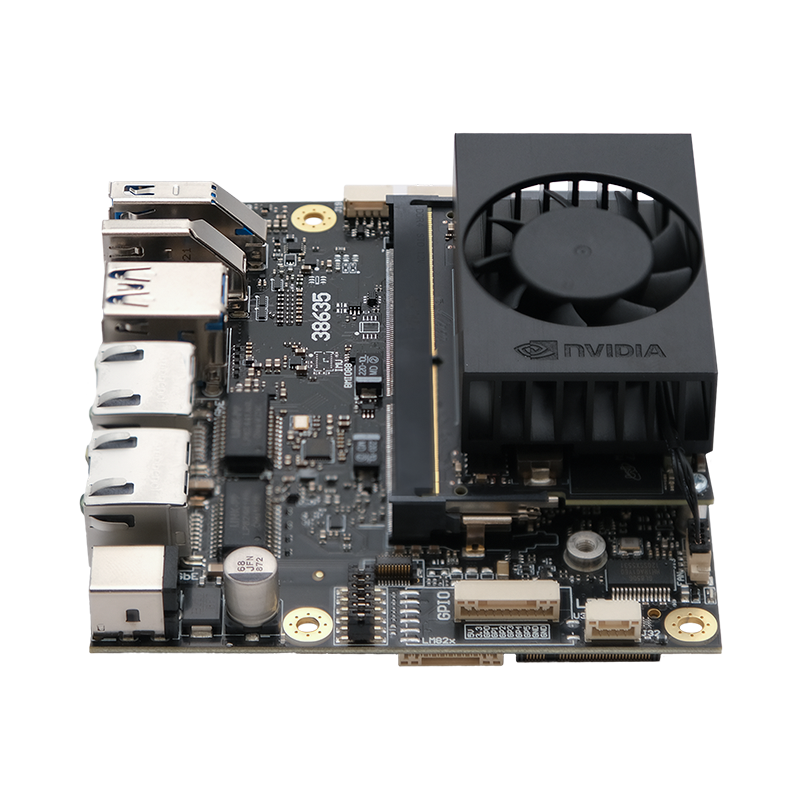

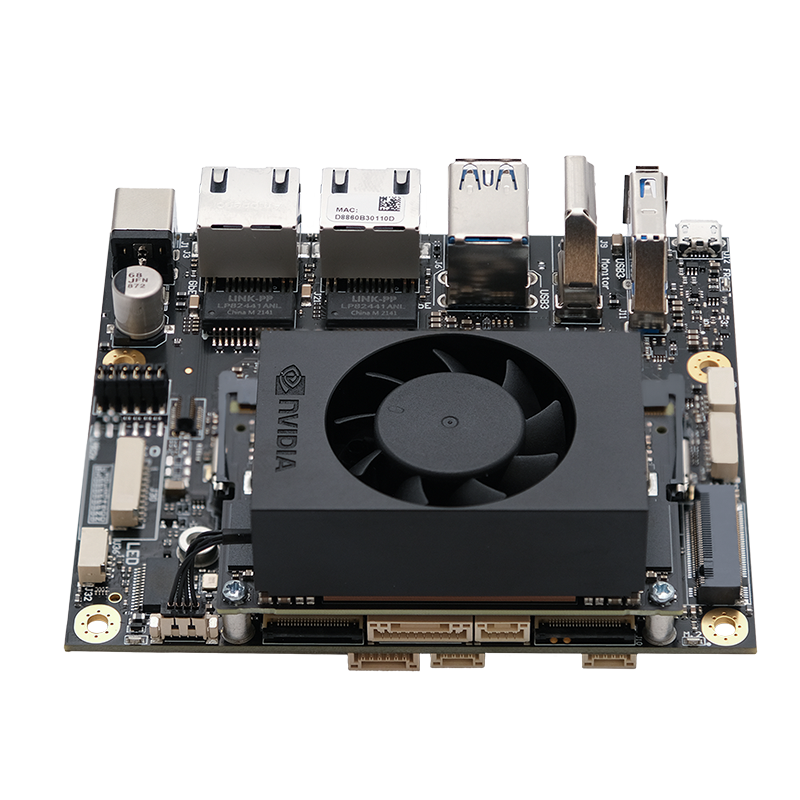

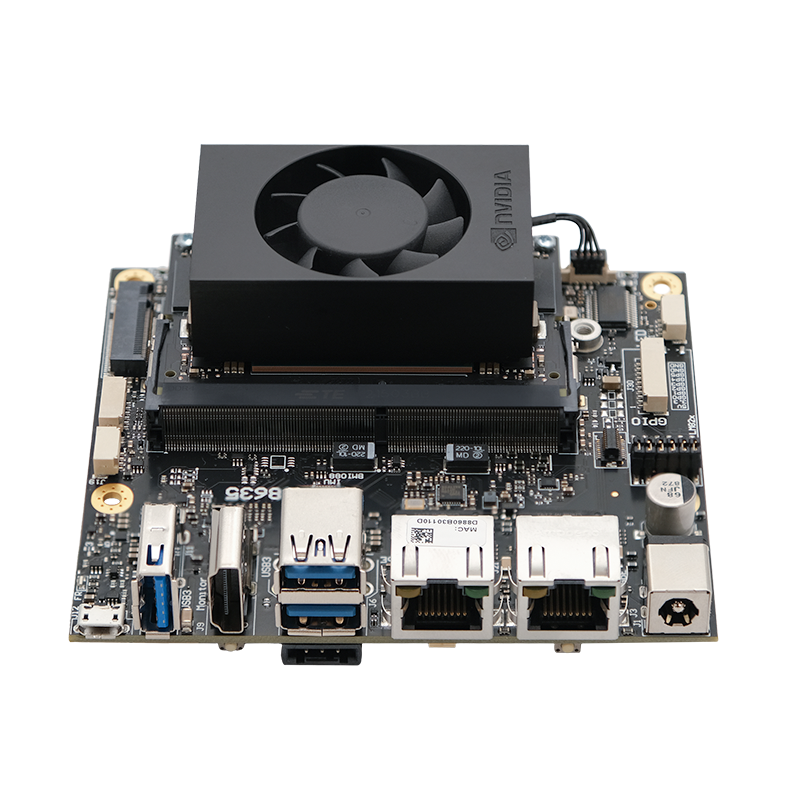

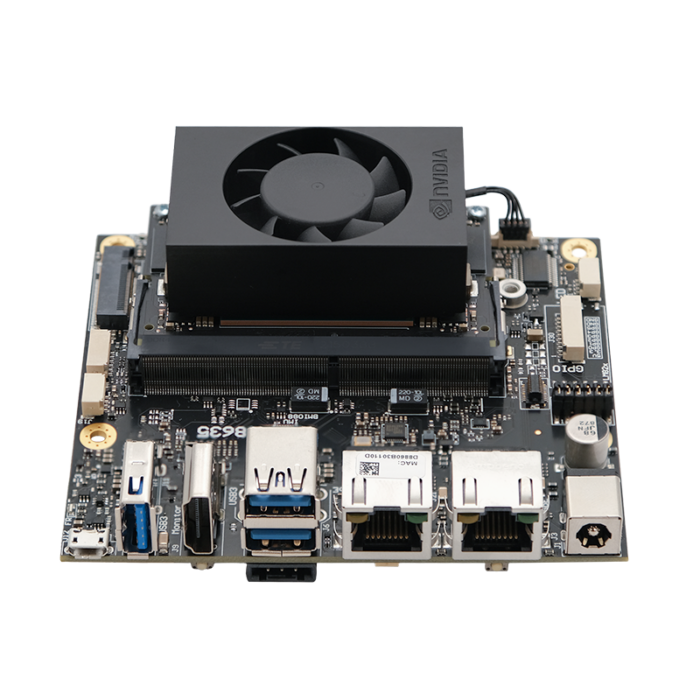

- Compact carrier board compatible with Orin Nano / Orin NX
JNX43-M.2 Jetson Orin Nano 4GB Ready-to-Use AI Kit
Out of stock
SKU: JNX43M2-ON4GB-KIT
Category: Ready-to-Use AI Kits
Tags: Auvidea AI Kits, jetson orin nano, Jetson Orin Nano AI Kits, jnx43
- Brand
- Carrier Board Specifications
- JNX43 Datasheet
- Jetson Orin Nano Datasheet
- What’s in the Box
- Setup
- Resources
Brand
Auvidea
Carrier Board Specifications
| Module Compatibility | Nano/ TX2 NX/ Xavier NX/ Orin Nano/ Orin NX |
| Orin Nano/NX | 3x (native) USB 3.0 |
| Nano/ Xavier NX | 1x (native) USB 3.0 and USB 2.0 |
| HDMI | HDMI 2.0 (4kp60) |
| UART | 2x (1x when LTE module is used) |
| SPI | 1x (1.8V) |
| I2C | 3x (3.3V) |
| I2S | 1x (1.8V) |
| GPIO | I2C port expander |
| CAN | 1x (with TJA1051 transceiver) |
| Buttons | PWR/ Force Recovery/ Reset |
| MIPI CSI-2 | 2x CSI-2 (22 pin- 4 lane) |
| MIPI CSI-2 Xavier NX | Only 1 Port (J5) |
| Ethernet | 2x Gigabit RJ45 |
| MCU | Yes |
| Micro USB | OTG |
| USB2 | 2x type A |
| USB3 | 1x with Xavier NX |
| LM823 Wifi | Yes |
| M.2 Key B | For LTE |
| M.2 Key E | Xavier NX: USB 2.0 module Orin NX: PCIe x1 & USB 2.0 module |
| M.2 NVME Key M | PCIe x4 for NVME SSD |
| Fan Connector | Yes |
| PoE | Optional |
| Power | 12V |
| CM power | 5V (8A Max) |
| Dimensions | 94.7x104.6mm 94.7x112.6mm |
JNX43 Datasheet
Jetson Orin Nano Datasheet
What’s in the Box
- Jetson Orin Nano 4GB Module
- JNX43-M2 Carrier Board
- Jetson Orin Nano Active Heatsink
- 12V/5A Power Adapter (Optional)
Setup
You can access the setup file provided by the board manufacturer via the link below.
If you would like the product setup and testing to be carried out by OpenZeka engineers, you can select the BSP setup service when purchasing the product. Customers who did not select the setup service at the time of purchase and were unable to complete the setup afterwards can purchase the after-sales setup service. For this service, please send an email to [email protected].
