NVIDIA Jetson AGX Orin Developer Kit 64GB – 945-13730-0055-000

REQUEST FOR QUOTEDATASHEET
SKU: 945-13730-0055-000 Categories: , Tag: OpenZeka Elite Partner

Description

The NVIDIA® Jetson AGX Orin™ Developer Kit makes it easy to get started with the Jetson AGX Orin module. Compact size, lots of connectors, and up to 275 TOPS of AI performance make this developer kit perfect for prototyping advanced AI-powered robots and other autonomous machines.

Jetson AGX Orin features an NVIDIA Ampere architecture GPU together with next-generation deep learning and vision accelerators, and its high-speed IO and fast memory bandwidth can feed multiple concurrent AI application pipelines. This means you can develop solutions using your largest and most complex AI models to solve problems such as natural language understanding, 3D perception, and multi-sensor fusion.

NVIDIA JetPack™ SDK brings the NVIDIA AI software stack to Jetson, along with application development and optimization tools. Software for specific use cases is available, including Isaac™ for robotics and Metropolis for smart cities, and you can save significant time developing your AI solution when you use your datasets with TAO toolkit to fine-tune pretrained AI models from the NGC™ catalog.

Jetson ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.

NVIDIA Jetson AGX Orin Developer Kit includes the power-efficient, high-performance Jetson AGX Orin module. This developer kit lets you build advanced robotics and AI edge applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare and life sciences.

With the computing capability of more than 8 Jetson AGX Xavier systems in a developer kit that integrates the latest NVIDIA GPU technology with the world’s most advanced deep learning software stack, you’ll have the flexibility to create tomorrow’s AI solution as well as today’s.

Additional information

Video Encode

2x 4K60, 4x 4K30, 8x 1080p60, 16x 1080p30 (H.265)

Video Decode

1x 8K30, 3x 4K60, 6x 4K30, 12x 1080p60, 24x 1080p30 (H.265)

Camera

16 lane MIPI CSI-2 connector

PCIe

x16 PCIe slot supporting x8 PCIe Gen4

RJ45

Up to 10 GbE

M.2 Key M

x4 PCIe Gen 4

M.2 Key E

x1 PCIe Gen 4, USB 2.0, UART, I2S

USB Type-C

2x USB 3.2 Gen2 with USB-PD support

USB Type-A

2x USB 3.2 Gen2, 2x USB 3.2 Gen1

USB Micro-B

USB 2.0

DisplayPort

DisplayPort 1.4a (+MST)

microSD slot

UHS-1 cards up to SDR104 mode

Other

40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons

Dimensions

110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution

Brand

NVIDIA

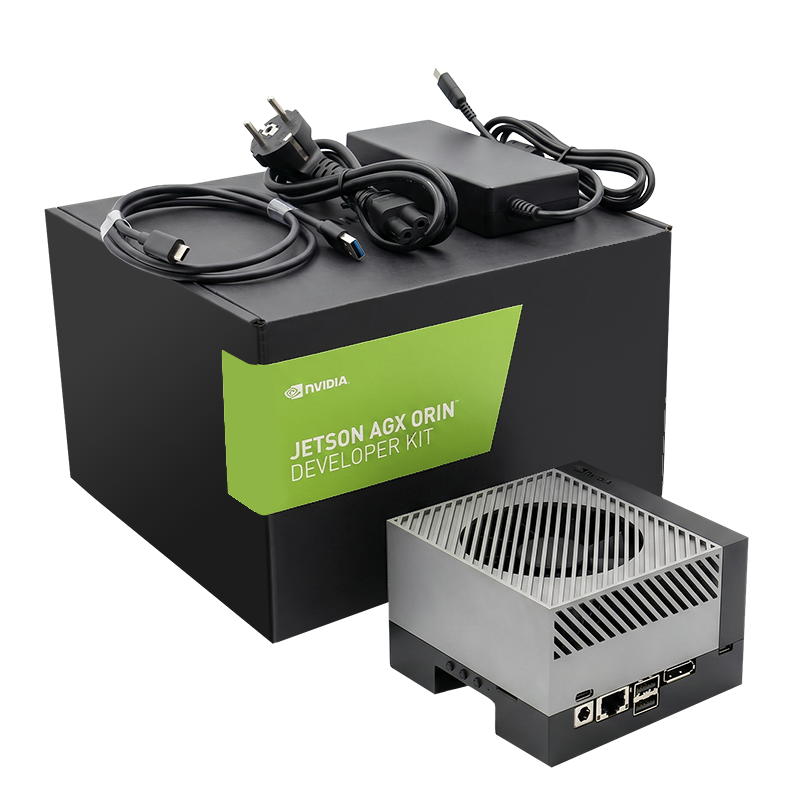

Developer Kit Contents

  • Jetson AGX Orin module with heat sink and reference carrier board
  • 802.11ac/abgn wireless Network Interface Controller
  • USB-C power adapter and cord
  • Quick Start and Support Guide
