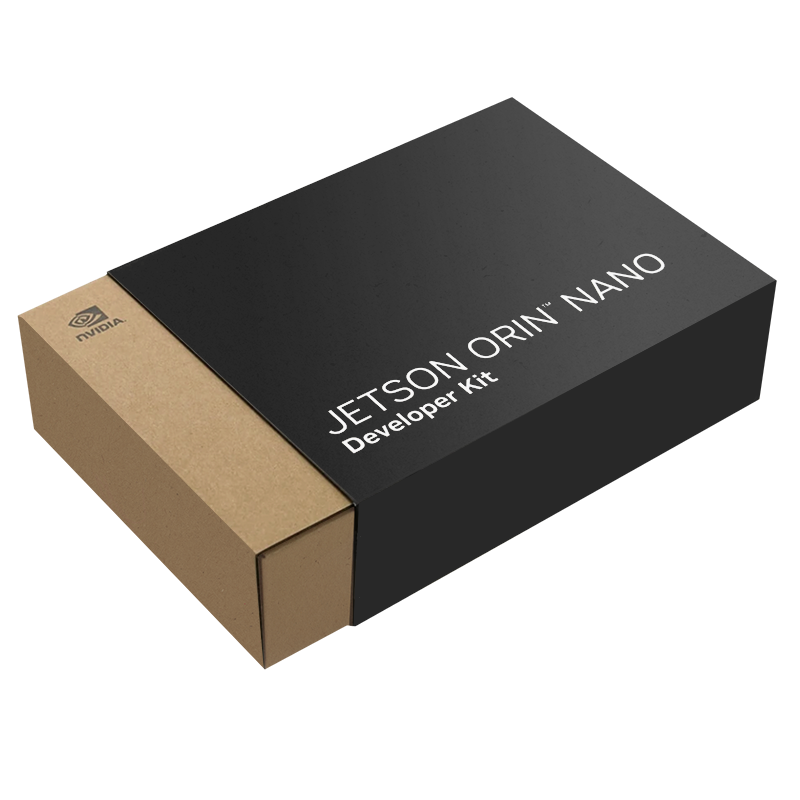

NVIDIA Jetson Orin Nano Super Developer Kit – 945-13766-0005-000

REQUEST FOR QUOTEDATASHEET
SKU: 945-13766-0005-000 Categories: , Tags: , , OpenZeka Elite Partner

Description

The NVIDIA Jetson Orin™ Nano Super Developer Kit is a compact, yet powerful computer that redefines generative AI for small edge devices. It delivers up to 67 TOPS of AI performance—a 1.7X improvement over its predecessor—to seamlessly run all kinds of generative AI models, like vision transformers, large language models, vision-language models, and more.

Existing Jetson Orin Nano Developer Kit users can experience this performance boost with just a software upgrade, so everyone can now unlock new possibilities with generative AI.

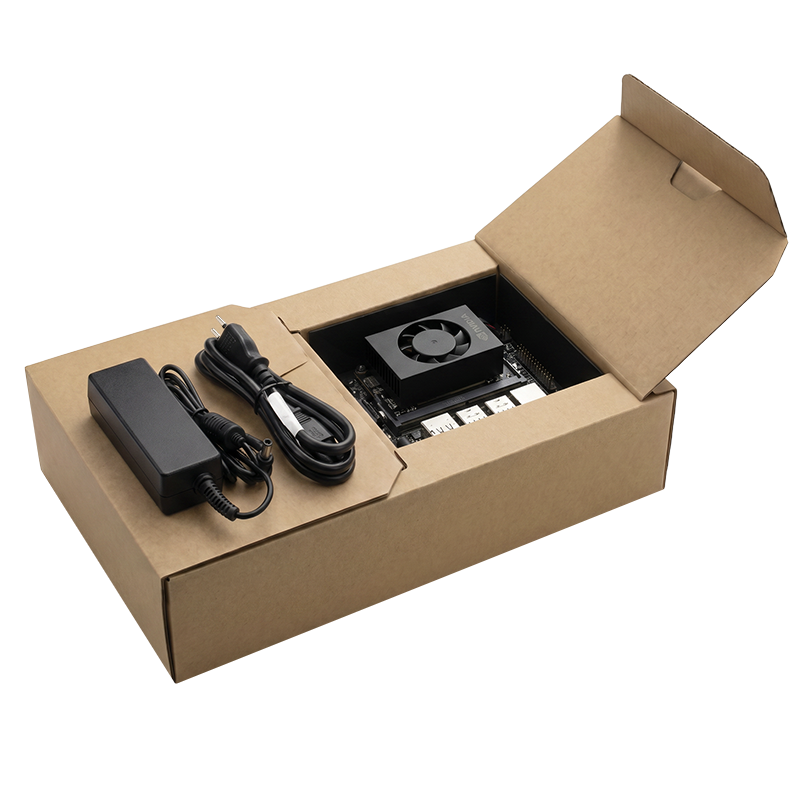

The developer kit comprises a Jetson Orin Nano 8GB module and a reference carrier board that can accommodate all Orin Nano and Orin NX modules, providing an ideal platform for prototyping your next-gen edge AI product. The Jetson Orin Nano 8GB module features an Ampere GPU and a 6-core ARM CPU, enabling multiple concurrent AI application pipelines and high-performance inference. The carrier board boasts a wide array of connectors, including two MIPI CSI connectors supporting camera modules with up to 4-lanes, allowing higher resolution and frame rate than before.

Jetson runs the NVIDIA AI software stack, with available use-case-specific application frameworks, including NVIDIA Isaac™ for robotics, NVIDIA Metropolis™ for vision AI, and NVIDIA Holoscan™ for sensor processing. You can save significant time with NVIDIA Omniverse™ Replicator for synthetic data generation (SDG), and with NVIDIA TAO Toolkit for fine-tuning pretrained AI models from the NGC™ catalog.

Ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.

Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, and give you the flexibility to create the next generation of AI solutions with the latest NVIDIA technology. Together with the world-standard NVIDIA AI software stack and an ecosystem of services and products, your road to market has never been faster.

Additional information

GPU

NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 tensor cores

CPU

Memory

8GB 128-bit LPDDR5 68GB/s

Storage

Supports SD card slot and external NVMe

Video Encode

1080p30 supported by 1-2 CPU cores

Video Decode

1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)

Power

7W-25W

Camera

2 x MIPI CSI-2 22-pin camera connectors

PCIE

M.2 Key E slot, M.2 Key M slot with x2 PCIe Gen3, M.2 Key M slot with x4 PCIe Gen3

USB

USB Type A connector: 4x USB 3.2 Gen2, USB Type C connector for UFP

Networking

1x GbE

Display

DP 1.2

Other I/O

12-pin button header, 4-pin fan header, 40-pin expansion header (UART, SPI, I2S,I2C, GPIO), DC power jack, microSD slot

Brand

NVIDIA

Jetson Orin Nano Developer Kit DataSheet
