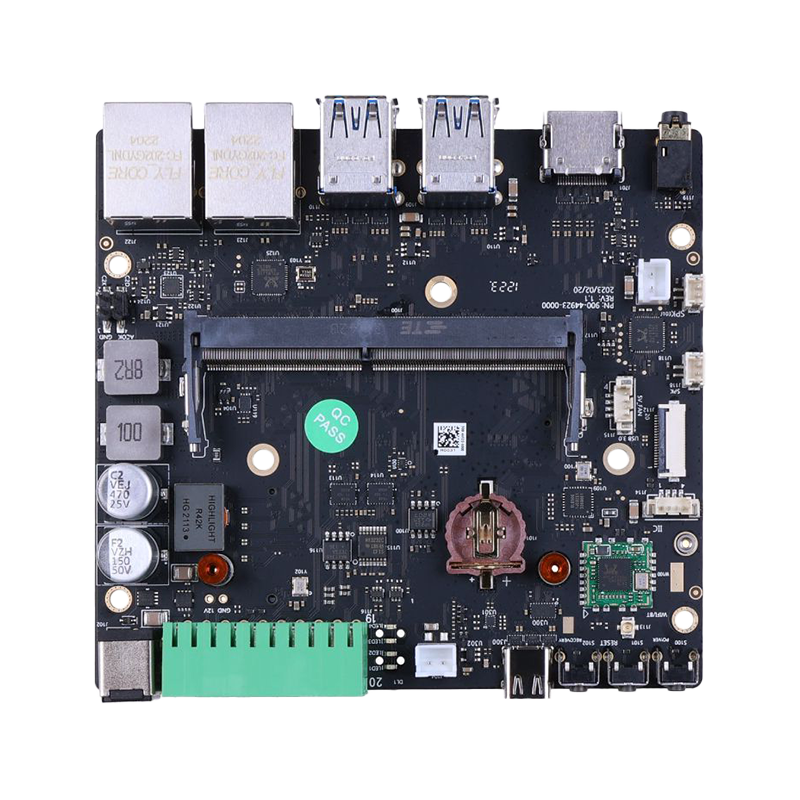

Seeed Studio A607 Carrier (Jetson Orin Nano, Orin NX)
SKU: 102110841
Categories: Carrier Boards, SEEED STUDIO Carrier Boards
Tag: Seeed Studio Carrier Boards
Description
The A607 carrier board is compatible with the NVIDIA Jetson Orin NX/Nano module. It provides high-speed networking and wireless connectivity with a 2GbE network port and a preloaded SMD WiFi/BlueTooth module.
It also features CAN, I2C connectivity, four USB 3.0 Type-A, one USB 2.0 / USB 3.0 Type-C and one USB 3.0 0.5mm pitch 20P ZIF for versatile connectivity options.
Offering a robust mechanical structure, the A607 carrier board operates in a temperature range of -25°C to 75°C.
Fundamentally, it works in conjunction with the NVIDIA module to create AI applications. When paired with an NVIDIA Jetson Orin Nano/Orin NX module, the A607 Carrier Board supports NVIDIA JetPack. This powerful suite provides advanced software libraries for deep learning, computer vision, and GPU computing (including BSP, Linux OS, NVIDIA CUDA, cuDNN, and TensorRT). Its compact size, low power consumption, and lightweight design make it an excellent choice for AI applications such as home robotics, drones, and unmanned underwater vehicles.
Additional information
| Compatibility | NVIDIA Jetson Orin Nano, NVIDIA Jetson Orin NX |
|---|---|
| Networking | 2x GigabitEthernet (10/100/1000) |
| USB | 1x USB 2.0 / 3.0 Type C, 1x USB 3.0 0.5mm pitch 20P ZIF, 4x USB 3.0 Type A (Integrated USB 2.0) |
| Camera | 1x 120-pin Camera Connector |
| Display | 1 x HDMI |
| FAN connector | 1x FAN connector（5V PWM） |
| M.2 Key M | 1x M.2 Key M |
| Other Ports | 1 x 20-pin IO connector(1x CAN,1x RS232, 1x RS485, 2x I2C, 2x UART, 2xGPIO, 2x SPI), 1x I2C Connector |
| WiFi | Pre-installed SMD WiFi (2.4 GHz) and Bluetooth module |
| Audio | 1x audio jack, 1x speaker connector |
| RTC | 1 x RTC socket with rechargeable 3V Lithium Battery Connector |
| Power | 12(7A)-36V(3A) DC |
| Power Adapter | DC Jack 19V 4.74A(Barrel Jack 5.5/2.5mm) |
| Dimension | 115 x 105mm |
| Operating Temperature | -25℃~75℃ |
| Brands | Seeed Studio |
| Video Output | HDMI |
| Ethernet Ports | 2 |
| USB Ports | 4 |
| Module Compatibility | Orin Nano, Orin NX |
Brand
Seeed Studio
A607 Manual
Box Contents
- 1 x A607 Carrier Board
- 1 x Power Adapter 19V/4.74A (power cable not included)
