Seeed Studio A608 Carrier (Jetson Orin Nano, Orin NX)

Description

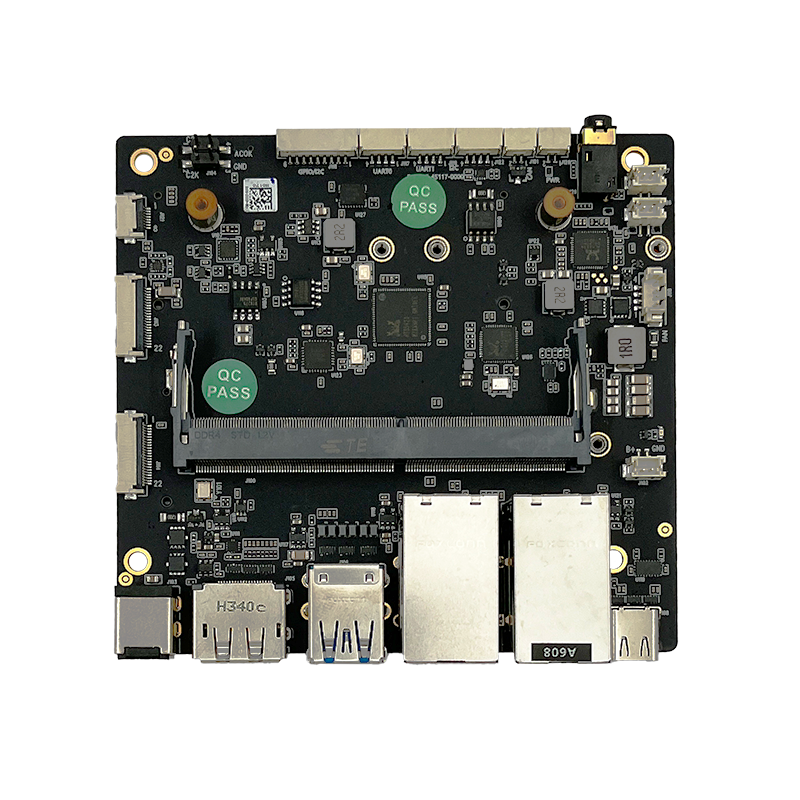

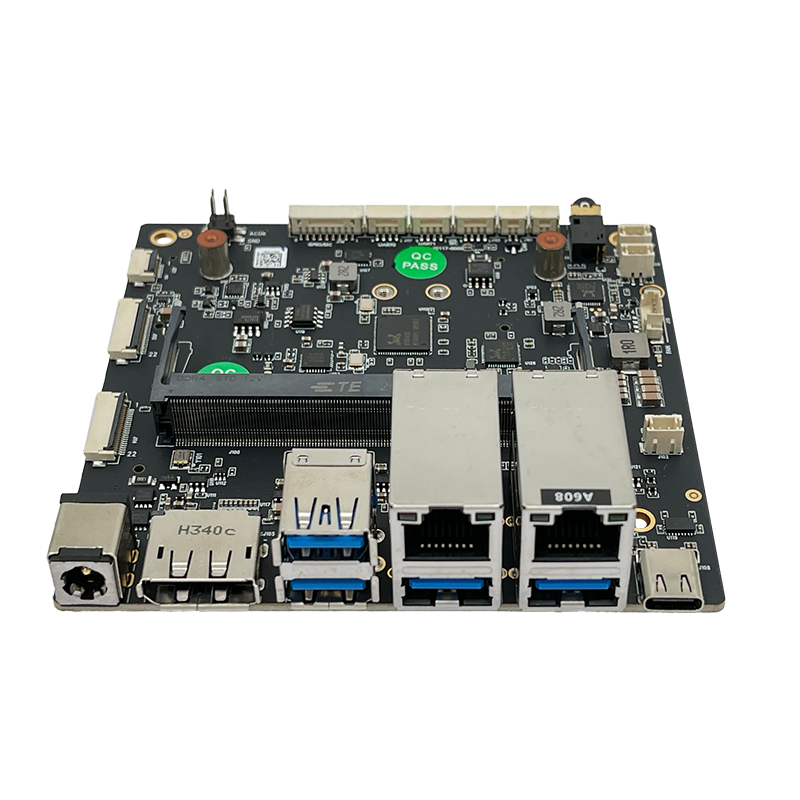

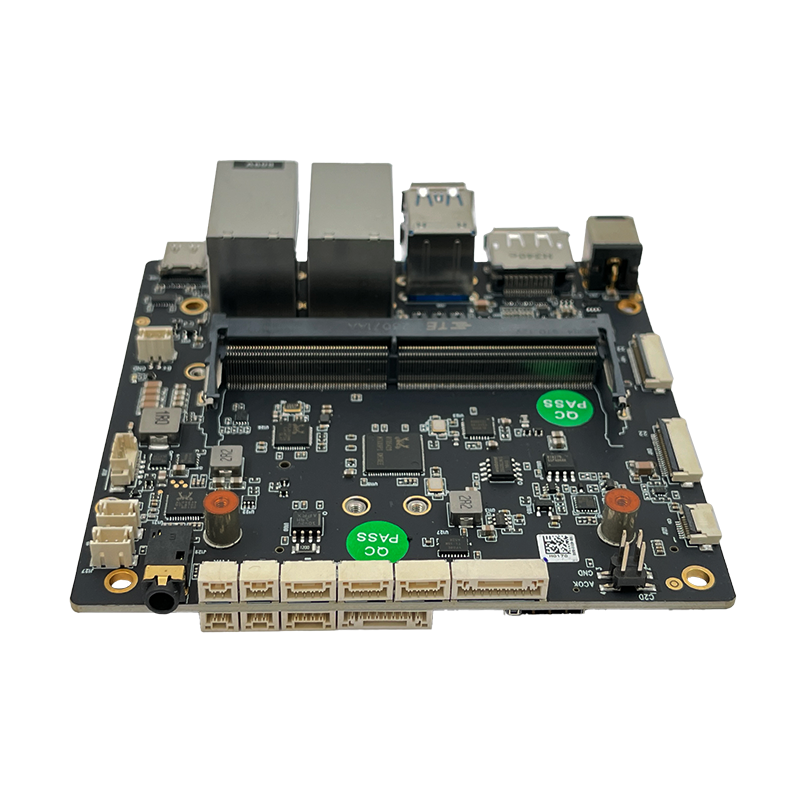

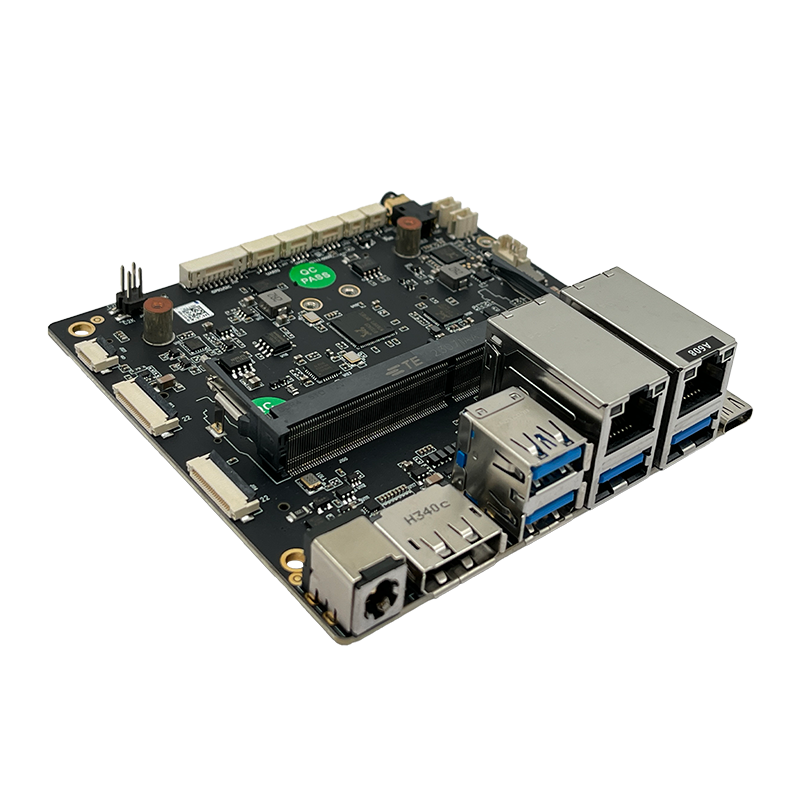

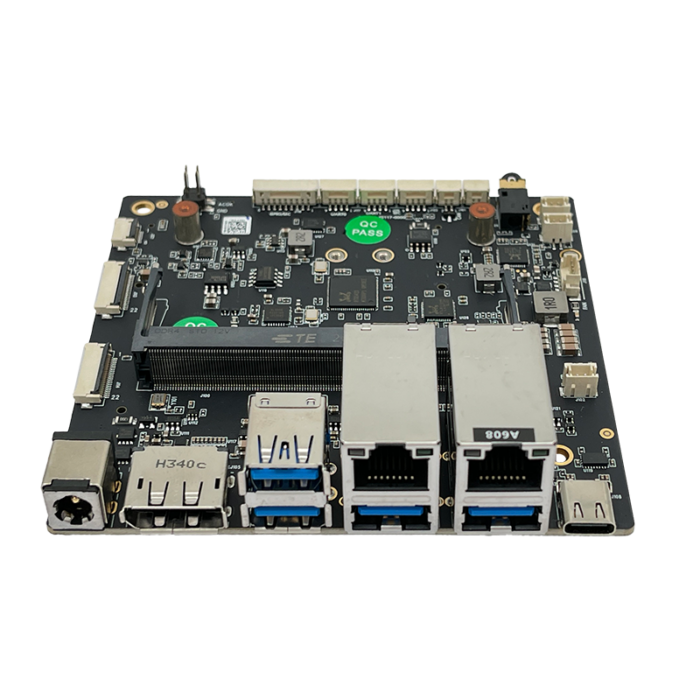

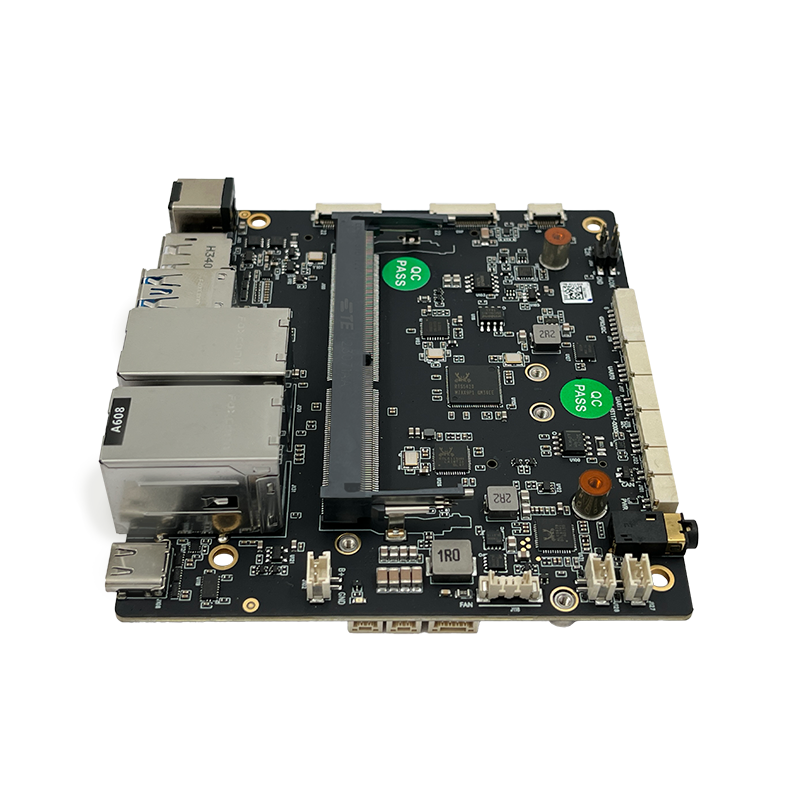

The A608 carrier board is compatible with NVIDIA Jetson Orin NX/Nano modules. With dual GbE network ports, it enables high-speed network connectivity, offering real-time processing and scalability for edge devices in video analytics solutions. It efficiently transfers data from multiple streams with low latency.

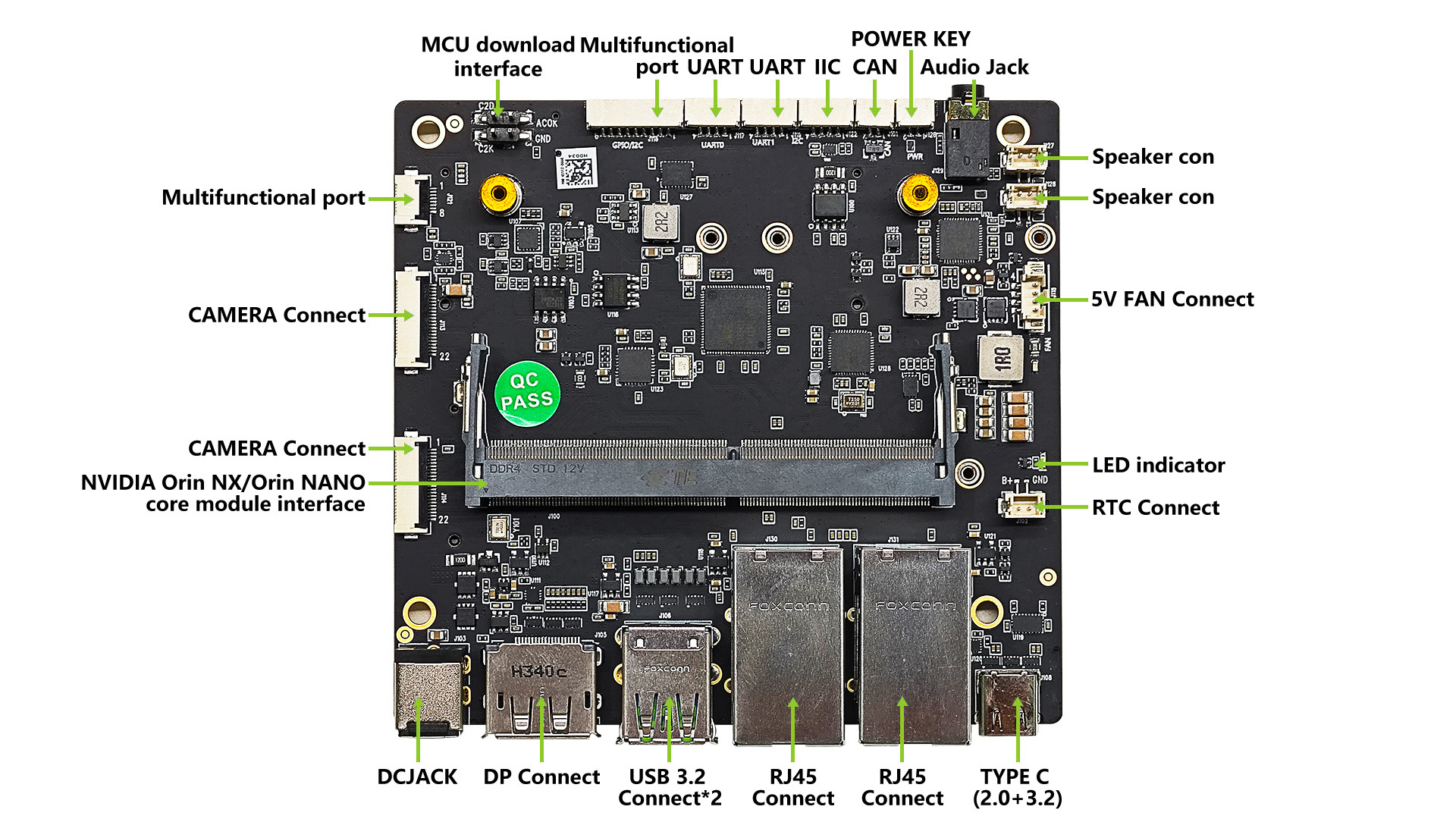

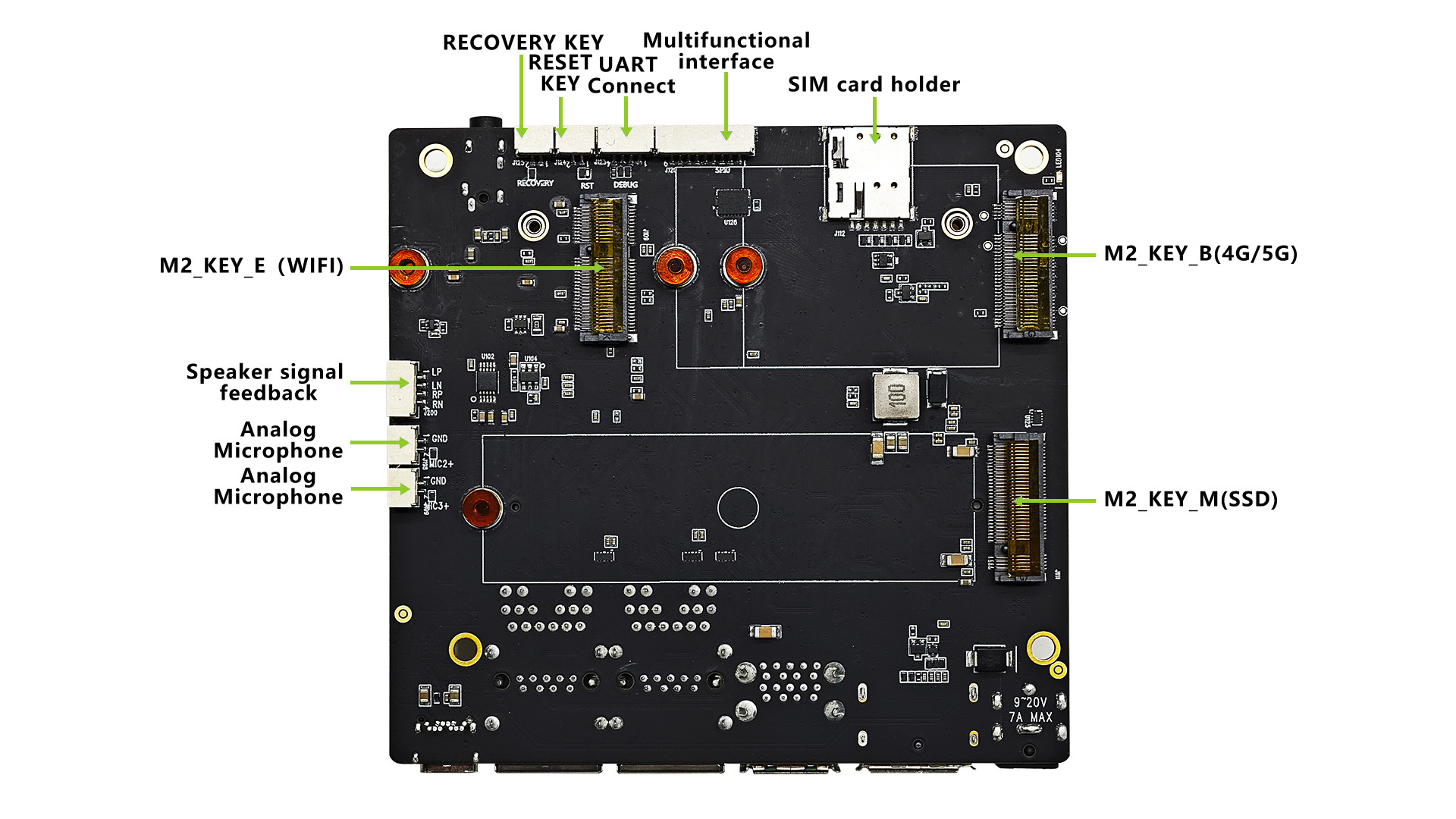

By combining M.2 Key M / M.2 Key B slots with WiFi and 4G/5G communication, this board is an ideal choice for developers working on computer vision, robotics/drones, and generative AI applications across various industries.

Storage can be expanded through the onboard M.2 Key M interface. Additionally, it includes a fan connector (5V PWM) for cooling and an RTC socket for reliable timekeeping. The board operates within a wide input range of 9-20V DC, providing up to 60W of power, allowing flexible integration into various computing tasks. It functions reliably within a temperature range of -25°C to 65°C.

Fundamentally, it works in combination with an NVIDIA module to develop AI applications. When equipped with an NVIDIA Jetson Orin Nano/Orin NX module, it supports NVIDIA JetPack, which includes deep learning, computer vision, and GPU computing libraries such as BSP, Linux OS, NVIDIA CUDA, cuDNN, and TensorRT.

With its compact size, low power consumption, and lightweight design, it is well-suited for small-scale AI graphics applications like home robots, UAVs, and unmanned submarines.
