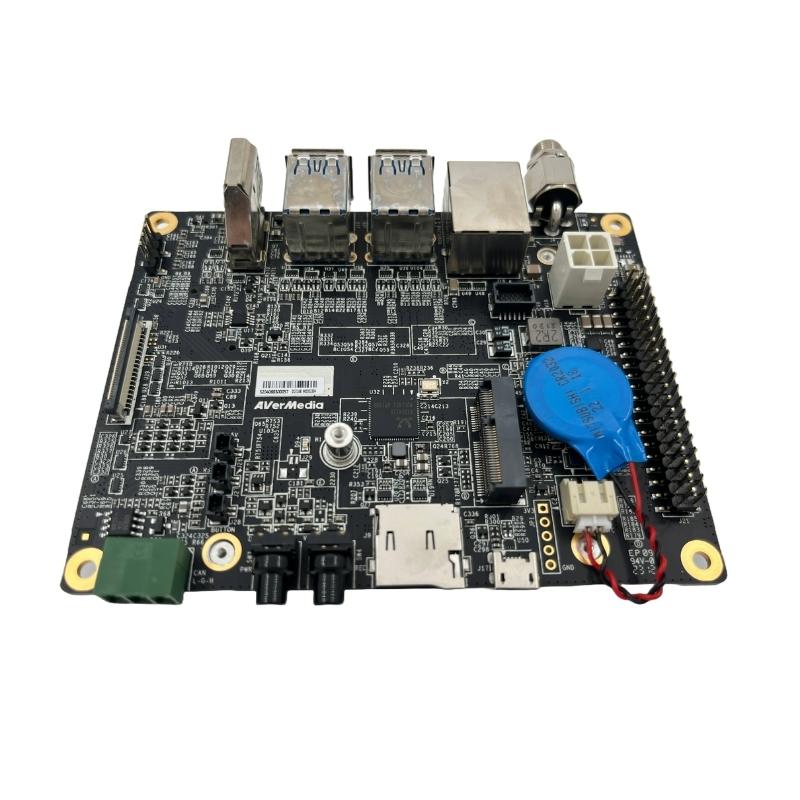

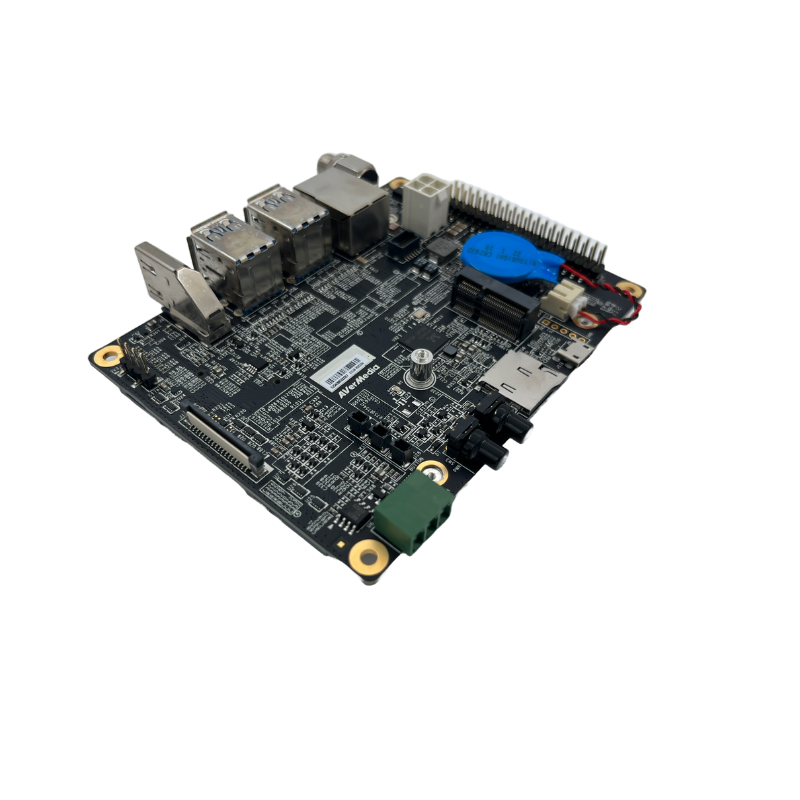

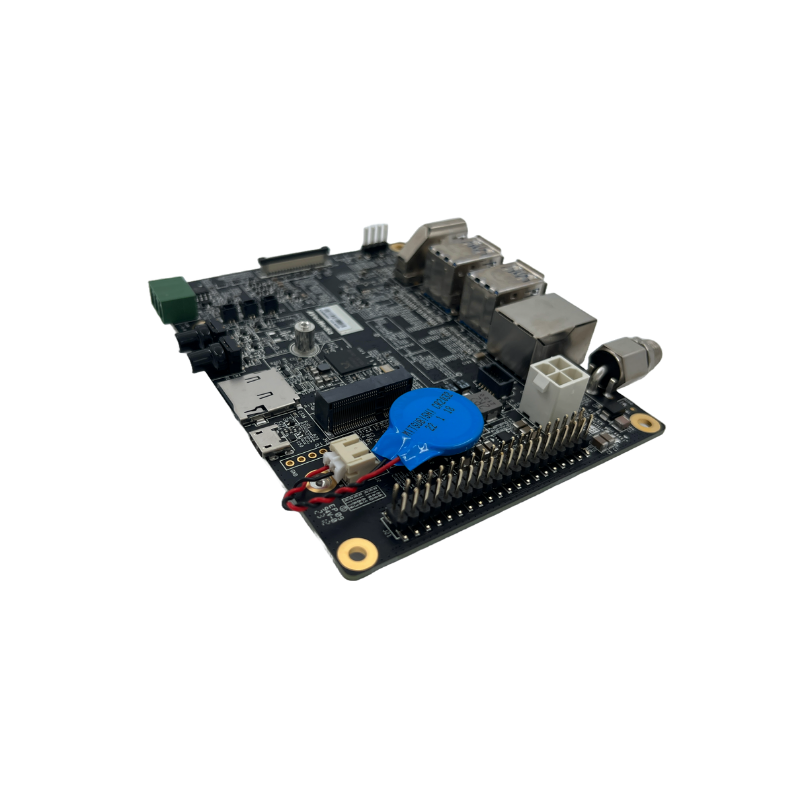

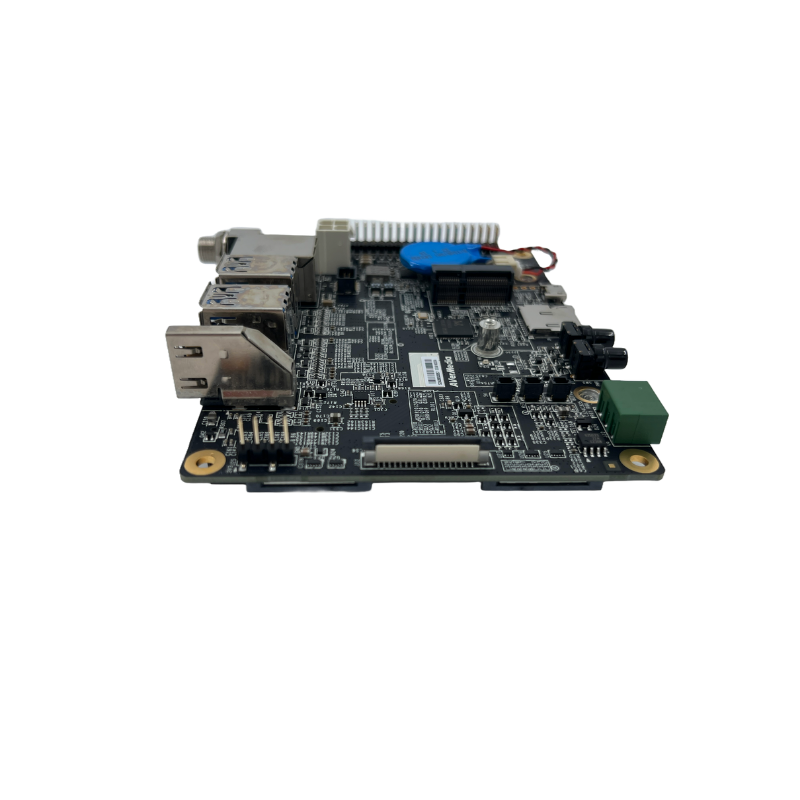

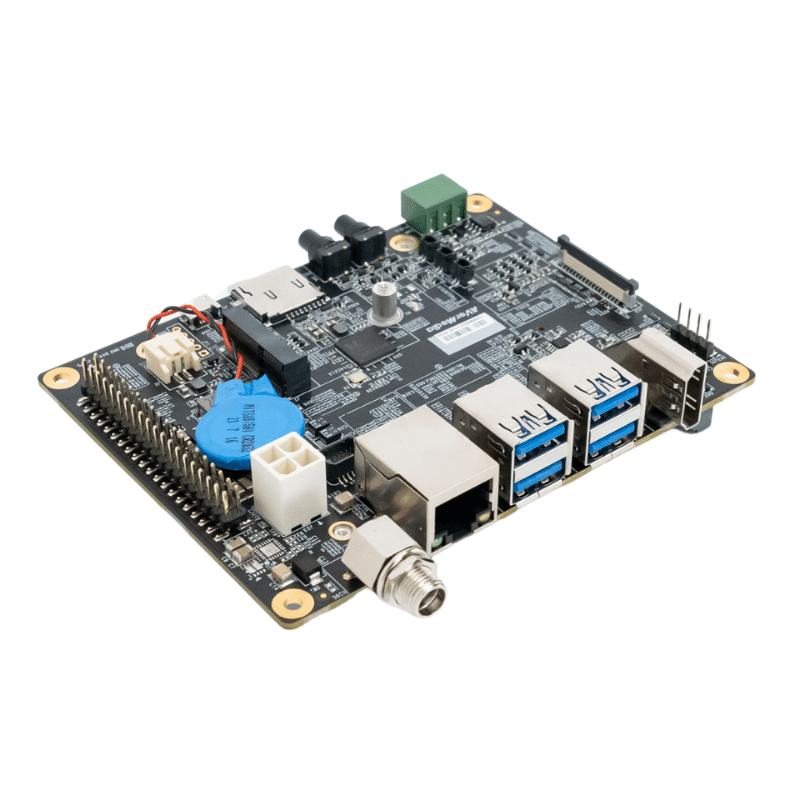

AverMedia D131 Carrier Board (NVIDIA Jetson Orin NX, Orin Nano)
SKU: D131
Categories: AVERMEDIA Carrier Boards, Carrier Boards, Jetson Platform
Tags: AverMedia Carrier Boards, jetson orin nano, jetson orin nx
Description
The AVerMedia D131 carrier board is designed for the NVIDIA Jetson Orin Nano and Orin NX modules. The D131 delivers advanced AI performance for all autonomous machines.
Additional information

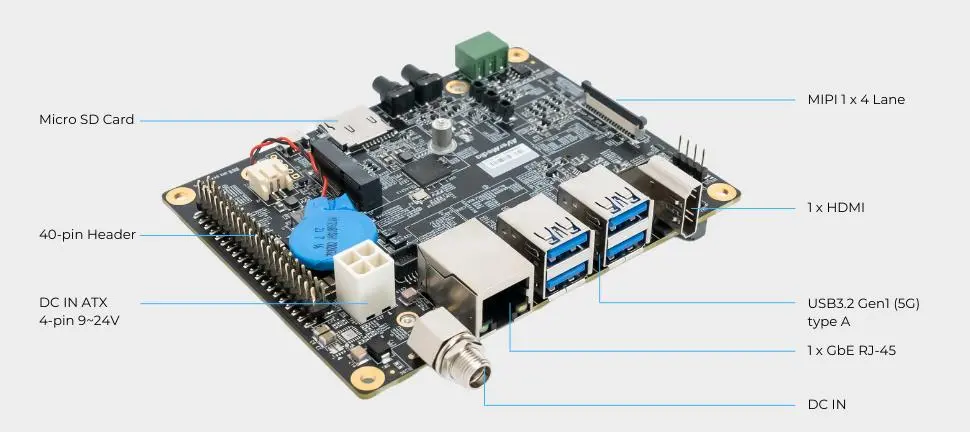

| Module Compatibility | Orin Nano, Orin NX |
|---|---|
| Networking | 1x GbE RJ-45(PoE), 1xM.2. key E 2230 for wifi |
| Display | 1x HDMI (3840 x 2160 at 30Hz) for Orin Nano, 1x HDMI (3840 x 2160 at 60Hz) for Orin NX |
| Operating Temperature | 0°C~70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 40 °C @ 95%, Non-Condensing |
| MIPI Cameras | 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector, 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector |
| USB | 1x USB 2.0 Micro-B for recovery, 4x USB 3.2 Gen 1 Type-A |
| Storage | 1x M.2. key M 2280 for SSD |
| Expansion Header | 1xCAN with transceiver (3-pin terminal block), 1xOOB supported by Allxon, 40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, 6x GPIOs |
| Input Power | 12V/5A, 9V~24V is recommended., DC IN JACK on board & ATX 4pin |
| Power Cord | US/JP/EU/UK/TW/CN/AU |
| Thermal solution | Fan (optional) |
| Button | Power and Recovery |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| Dimension | 113mm (W) x 105mm (L) x 28.53mm (H) |
| Weight | 97 g |
| Brands | AVerMedia |
| USB Ports | 4 |
| Ethernet Ports | 1 |
| Camera Support | MIPI CSI |
