- Extremely small footprint: 135mm x 50mm x 105mm
- 4x FPD Link, USB 3.0, USB 2.0, CAN 2.0b, USB OTG, RS-485, I2C, GPIO, SPI, PWM
- 1x NVMe (PCIe x4, 2280)
- Operating Temperature Range: -20°C to +80°C

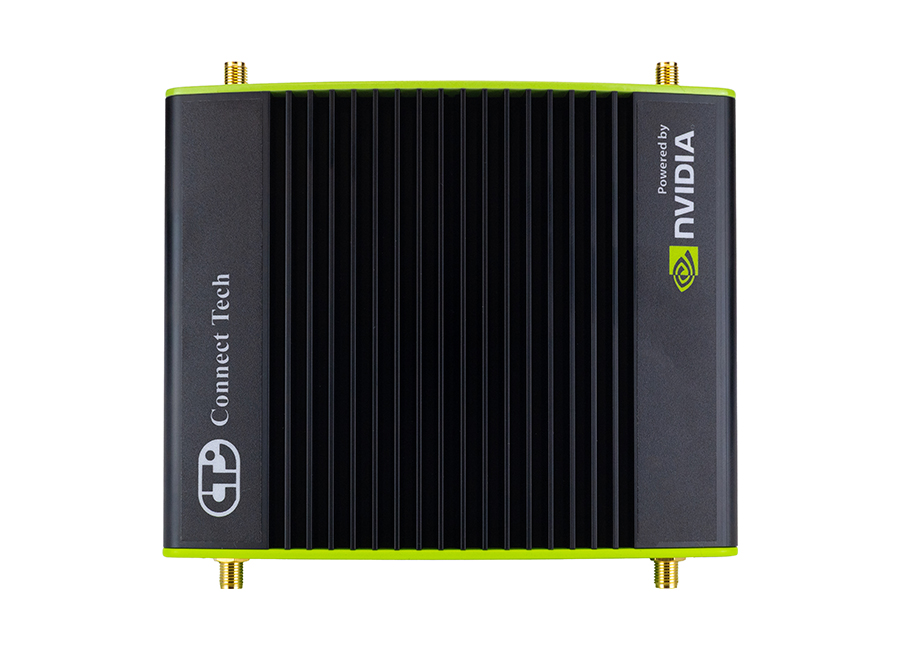

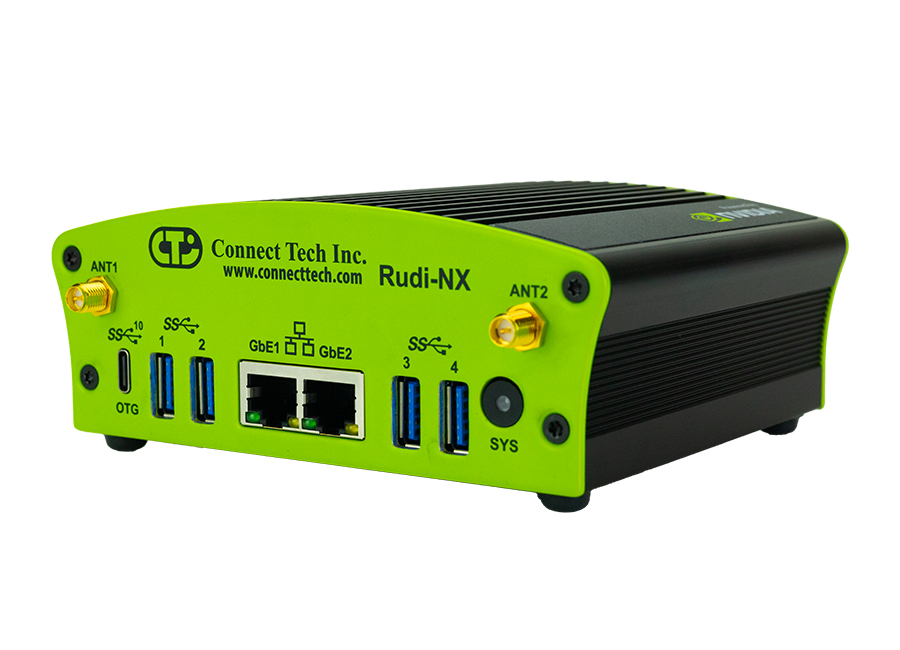

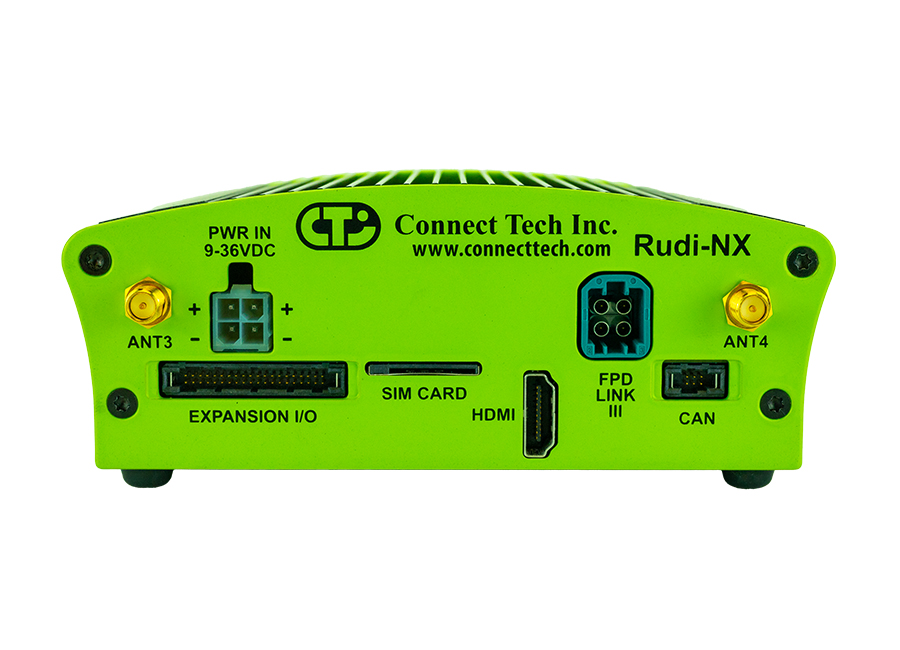

Rudi-NX FPD-Link III – Embedded System with NVIDIA Jetson Orin NX
Out of stock
Description
Connect Tech’s Rudi-NX is the ultimate Edge AI computing device for state-of-the-art, compute-intensive applications. Powered by NVIDIA® Jetson Orin™ NX, it can deliver up to 100 TOPS of performance in 15W. With 1024 CUDA Cores, 32 Tensor Cores, and 2 NVDLA v2 engines, it can run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

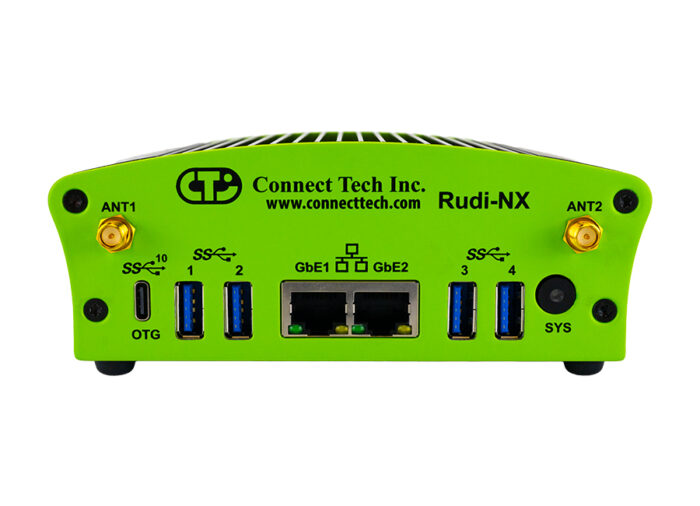

The Rudi-NX enables multiple vision inputs including up to 4x FPD-Link III Camera inputs, 4x USB 3.0 ports and 2x Gigabit Ethernet ports. Additional connectivity via CAN, UARTs, RS-485, I2C, SPI, and GPIO.
Brand
Connect Tech
Specifications
| AI Performance | Orin NX 16GB – 100 TOPS, Orin NX 8GB – 70 TOPS |
|---|---|
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
| Memory | 16GB 128-bit LPDDR5 (Orin NX 16GB), 8GB 128-bit LPDDR5 (Orin NX 8GB) |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265) |
| DL Accelerator | 2x NVDLA v2.0 |
| Network | 2x 10/100/1000 BASE-T Ethernet |
| Display Output | 1 x HDMI 2.0 |
| USB | 4 x USB 3.0 Ports (Type-A), 1 x USB OTG (Type-C) |
| Camera | 4x FPD-Link III |
| Storage | 16GB internal eMMC 5.1, 1x NVMe expansion (M.2 M-key, PCIe x4, 2280)** |
| Wireless Expansion | 1x M.2 B-Key (USB 3.0 + USB 2.0, 3042), 1x M.2 E-Key (PCIe x1 + USB, 2230), 1x M.2 M-Key (PCIe x4, 2280) |
| Other I/O | 1x UART, 1x RS-485, 2x I2C, 2x SPI, 4x GPIO, 2x PWM, 3x +5V output, 3x +3.3V output |
| CAN | 1 x CAN 2.0b Port |
| Power Input | 9~36V DC input |
| Operating Temperature | -20°C to +80°C |
| Dimensions | 135mm x 50mm x 105mm |
| Weight | 646 g (with module only – without NVMe, WiFi/BT or LTE installed) |
