- Compatible with NVIDIA Jetson AGX Orin and AGX Orin Industrial Modules
- 4x USB 3.2 Gen2 Type-A
- 1x USB 3.2 Gen2 Type-C (OTG)
- 4x 10/100/1000Mbps Ethernet
- 1x MicroSD Slot
- CAN Bus 1 x 2.0b
- 1x HDMI 2.0 3840×2160 at 60Hz
- Active Heatsink

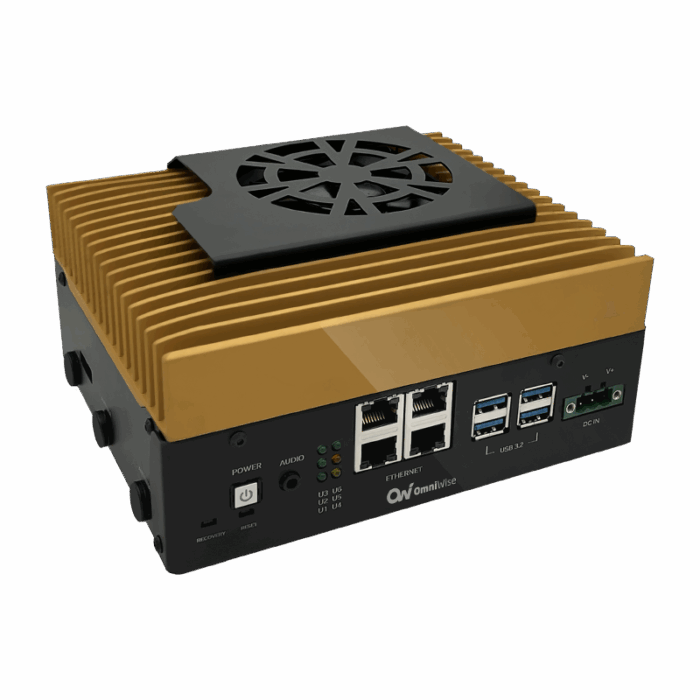

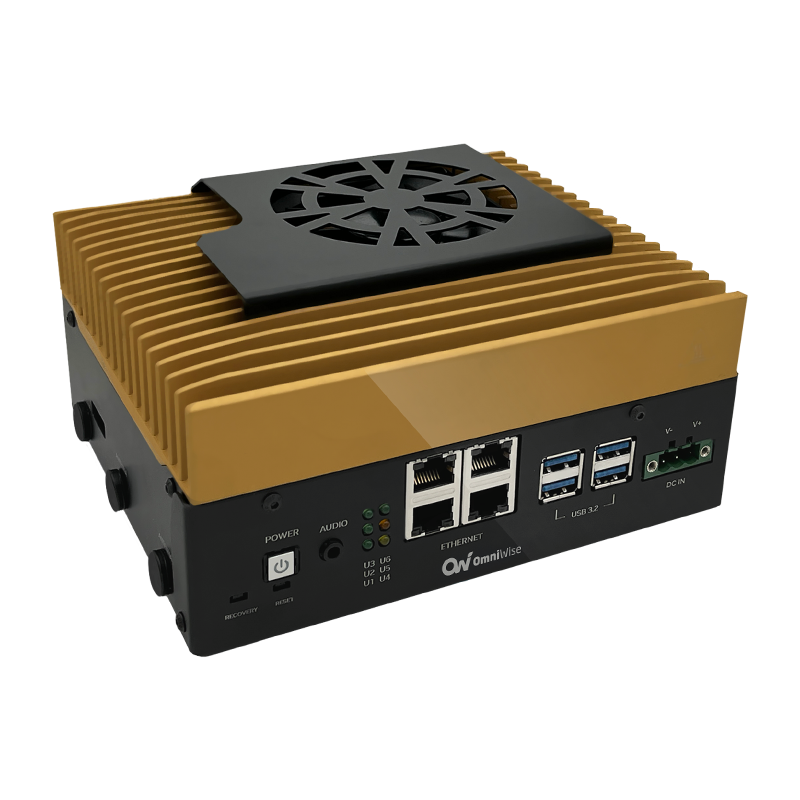

ANQA Active AI BOX 32GB
Description
The NVIDIA Jetson AGX Orin series delivers revolutionary performance in Generative AI, Robotics, and Edge AI. Jetson AGX Orin modules enable the easy implementation of large and advanced models to solve complex problems such as natural language understanding, 3D sensing, and multi-sensor fusion.
ANQA Active AI BOX delivers up to 275 TOPS of AI performance for AI-powered robots and autonomous machines, leveraging server-class performance from the NVIDIA Jetson AGX Orin series. With its powerful hardware and advanced AI capabilities, ANQA BOX successfully runs even the most demanding AI applications, setting a new standard in industrial and smart city solutions.
Key Features:
- High-Speed Connectivity: 4x 10/100/1000Mbps Ethernet (PoE supported, IEEE 802.3af/at)
- Wide I/O Support: 4x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C (OTG)
- Enhanced Display: 1x HDMI (3840×2160 @ 60Hz)
- Storage and Expandability: 1x MicroSD Slot
- Industrial Communication: 1x CAN Bus 2.0b, isolated (DB9)
- Active Cooling: High-efficiency Active Heatsink
- Wide Operating Temperature Range: Reliable performance between -20°C and +70°C.
ANQA BOX delivers high performance for AI applications with its powerful hardware and advanced connectivity options. Bringing the power of the NVIDIA Jetson AGX Orin platform to industrial use cases, ANQA BOX is designed to operate reliably even under challenging conditions.
Brand
OmniWise
Specifications
| Model Name | ANQA Active AI Box 64GB |
|---|---|
| Module Support | NVIDIA Jetson AGX Orin 64GB |
| Module Compatibility | NVIDIA Jetson AGX Orin 64GB, NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin Industrial |
| AI Performance | 275 TOPS (INT8) |
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 tensor cores |
| CPU | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Fan | Active Heatsink |
| Memory | 64GB 256-bit LPDDR5 204.8 GB/s |
| Serial Ports | 1x COM RS-232/RS-422 RS-485 (DB9) |
| DL Accelerator | 2x NVDLA v2.0 |
| Graphics Interface | 1x HDMI |
| Environmental Conditions | -20°C ...+70°C (50W) |
| Ethernet Port | 4x 10/100/1000Mbps Ethernets (PoE support, IEEE 802.3af/at) 10GbE Support 10G/5G/2.5G /1000M/100M/10M LAN speed |
| Storage | 1x M.2 M Key 2242 SSD |
| Wireless Network | 1x M.2 E-Key |
| 5G/LTE | 1x M.2 B key 3042 and 3052 |
| Input Power | 24V DC Input |
| USB | 4x USB 3.2 Gen2 Type-A 1x USB 3.2 Gen2 Type-C (OTG) |
| Video Encode | 2x 4K60 | 4x 4K30 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1 |
| Video Decode | 1x 8K30 | 3x 4K60 | 7x 4K30 11x 1080p60 | 22x 1080p30 (H.265) H.264, VP9, AV1 |
| SD Card Slot | 1x MicroSD Slot |
| Operating Humidity | ~95% @40°C (non-condensing, optional with fanless solution) |
| Audio | Mic-in (Mono), Line-out (Stereo) |
ANQA Active AI Box Datasheet
Setup
You can access the setup files provided by the manufacturer via the link below.
If you would like the product setup and testing to be carried out by OpenZeka engineers, you can select the BSP setup service when purchasing the product. Customers who did not select the setup service at the time of purchase and were unable to complete the setup afterwards can purchase the after-sales setup service. For this service, please send an email to [email protected].
