The AVerMedia D115SONP is a high-performance Edge AI Box PC solution based on the NVIDIA® Jetson Orin™ NX. With Super Mode support, dual Gigabit Ethernet, M.2 expansion options, and a compact industrial design, it provides a powerful and scalable platform for applications such as image analytics, smart cities, robotics, and embedded artificial intelligence.
D115SONP Orin Nano 8GB Box PC
Description
AVerMedia D115SONP
The AVerMedia D115SONP combines the NVIDIA® Jetson Orin™ Nano platform with a compact industrial Box PC architecture, delivering a powerful system optimized for edge-based AI applications. Designed for real-time image processing, video analytics, object detection, and low-latency inference workloads, the device accelerates both development and field deployment processes.
Thanks to its compact design, the D115SONP can be easily integrated into space-constrained projects while delivering high AI computing performance with low power consumption. Its industrial-grade construction makes it a reliable solution for continuously operating systems, smart devices, and Edge AI infrastructures.
The integrated MIPI CSI-2 camera interfaces provide high-speed data transmission for vision-based AI applications. With HDMI display output, USB connectivity, Gigabit Ethernet, and M.2 expansion options, the system can be easily adapted to a wide range of deployment scenarios. Support for NVMe SSD storage enables high-speed local data processing and meets the demands of data-intensive edge computing applications.
In addition, Allxon-powered remote device management enables more efficient system monitoring, maintenance, and OTA (Over-the-Air) update operations. This allows the platform to scale seamlessly from single-device deployments to large-scale Edge AI implementations, providing the flexibility required for a wide range of applications.
Key Features
• NVIDIA® Jetson Orin™ Nano-based Edge AI architecture
• Compact and industrial-grade Box PC design
• MIPI CSI-2 camera support
• Gigabit Ethernet connectivity
• HDMI display output
• High-speed USB 3.2 interfaces
• M.2 NVMe SSD storage support
• Wireless communication expansion support
• Allxon-powered remote management and OTA update support
• High AI performance with low power consumption
• Industrial-grade design suitable for demanding deployment environments
Use Cases
• Edge AI and real-time inference systems
• Smart camera and video analytics solutions
• Robotics and autonomous systems
• Smart city applications
• Industrial automation and quality inspection
• Retail analytics and vision-based decision-making systems
Additional information
| Product Model | D115SONP |
|---|---|
| Module Compatibility | NVIDIA Jetson Orin Nano 8GB |
| Ethernet | 2× GbE RJ-45 (Optional: Ethernet 1 supports PoE*; Ethernet 2 can be used for OOB management with NC-SI functionality) |
| Expansion | M.2 Key E 2230 x 1 for WiFi |
| Video Output | 1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano |
| Temperature | Operating temperature -25°C~60°C (for Orin Nano normal mode/Orin Nano super mode) Storage temperature -40°C ~ 85°C Relative humidity 40°C @ 95%, Non-Condensing |
| Camera Inputs | 2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector |
| USB | 1x USB 2.0 type C for recovery, 2x USB 3.2 Type-A (Native 10Gbps per port) |
| Storage | 1x M.2. key M 2280 for NVMe |

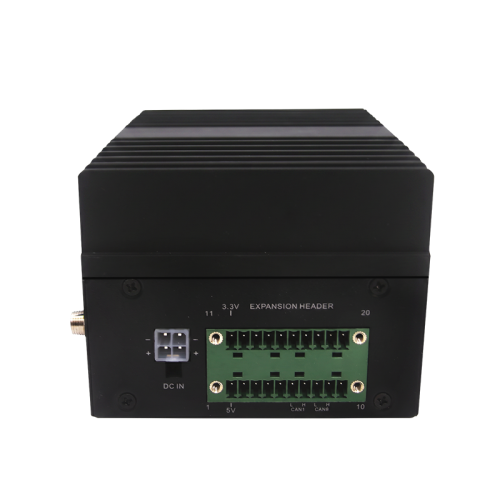

| Expansion Header (Internal) | 15-pin & 10-pin: Supports OOB management via OOB module (optional, sold separately), 20 pins: 2x I2C, 2x UART, 4x GPIOs, 1xCAN (EU terminal block)***, 40-pin wafer: Supports 4G/5G card functions via daughter board (optional, sold separately) |
| Input Power | 12V/5A power input, recommended input range: 12V ~ 24V, DC IN JACK on board & ATX 4pin |
| Button | 1x recovery, Power |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| Fan Module | Fanless Solution |
| Dimension | 190mm (W) x 200mm (L) x 80mm (H), 2kg (TBD) |
| Certification | CE, FCC, VCCI,KC |
Brand
AverMedia
D115SONP Datasheet
Jetson Orin Nano Datasheet
Box Content
• D115SONP 8GB Edge AI Box PC
• 19V Power Adapter
• 500 GB SSD
• Stick antenna for wireless connection
