reComputer Super J4012 | NVIDIA Jetson Orin NX 16GB
Out of stock
SKU: 114110314
Categories: Boxed System, SEEED STUDIO Boxes
Tags: ReComputer Super, Seeed Studio AI Box
Description

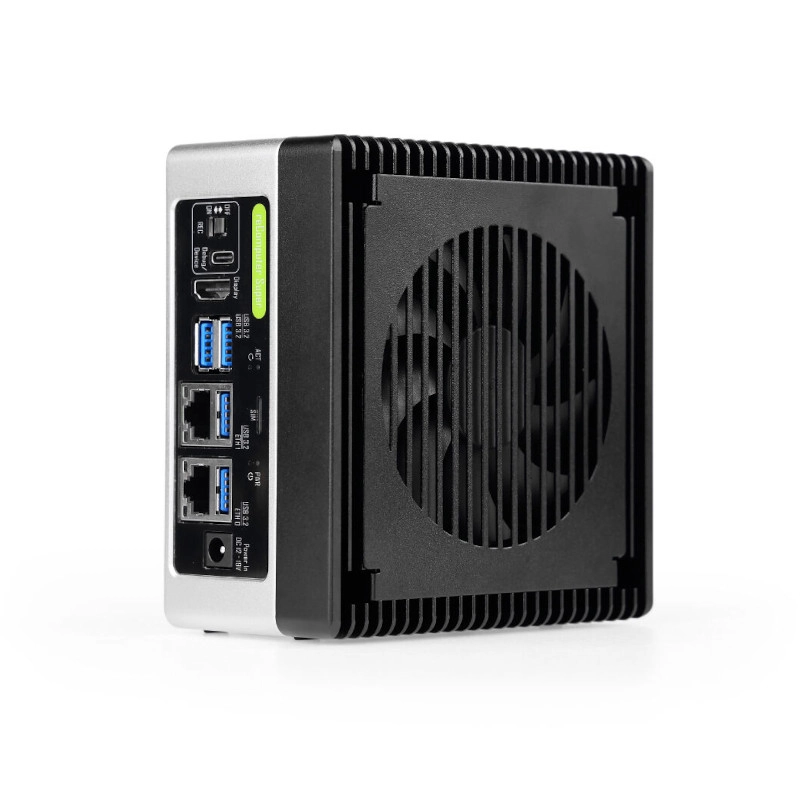

reComputer Super J4012 is a powerful and flexible Edge AI built on the NVIDIA® Jetson™ Orin™ NX 16GB module. It delivers up to 157 TOPS of AI performance in MAXN Super mode, providing a superior solution for video analytics, robotics, multimodal sensing, and generative AI applications.
Key Features
Super AI Performance: With 157 TOPS of processing power in MAXN Super mode, it delivers high performance in visual AI, robotics, and generative AI applications.
Energy Efficient Operation: Optimized performance and low energy consumption with adjustable power modes between 10W and 40W.
Durable Thermal Design: Reliable operation in challenging ambient temperatures between -20°C and 65°C.

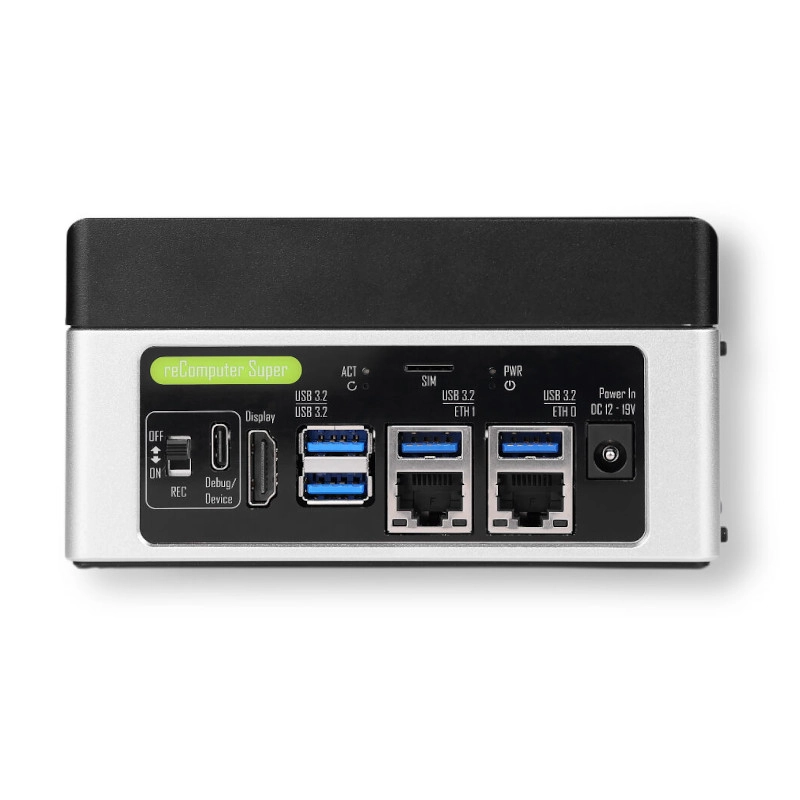

Rich Interfaces: Wide integration possibilities with 2xRJ45 Ethernet, SIM card slot, 4xUSB 3.2, HDMI 2.1, CAN, M.2 Key E/M, Mini-PCIe and 4xCSI camera connections.
With its superior performance and wide range of connectivity options, the reComputer Super J4012 offers reliable solutions in numerous fields, from autonomous mobile robots and smart retail to industrial automation and video analytics. Despite its compact size, its robust design, rich interfaces, and ready-to-use features make it an ideal Edge AI computer for both development and production.
Brand
Seeed Studio
Specifications
| Modül Uyumluluğu | Orin NX 16GB |
|---|---|
| AI Performansı | Orin NX 16GB – 157 TOPS(MAXN) |
| GPU | 32 Tensor Çekirdeğe sahip 1024 çekirdekli NVIDIA Ampere mimarisi GPU |
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Bellek | 16GB 128-bit wide LPDDR5 DRAM 102.4GB/s |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
| M.2 Key M | 1x M.2 Key M (Konnektör 2280 NVMe SSD'yi destekler) |
| M.2 Key E | 1x M.2 Key E (Konnektör 2230 Wifi/BlueTooth destekler) |
| Mini PCIe | 1x mini-PCIe for LTE 4G module |
| Ağ | 2x RJ-45 Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.2 Tip A (5 Gbps) 1x USB 2.0 Tip C (Cihaz Modu/Hata Ayıklama) |
| Kamera | 4x mipi CSI(2-lane 15-Pin) |
| Display | 1x HDMI 2.1 |
| Fan | 1x 4 Pinli 1,25 mm Fan Konnektörü (5V PWM) 1x 4 Pinli 2,54 mm Fan Konnektörü (12V PWM) |
| CAN | 1x CAN |
| Diğer Portlar | 1x 40-Pin header 1x 12-Pin header (1x UART,1x Control) |
| RTC | 1 x RTC 2-pin, 1 x RTC soketi |
| Güç | 12-19V 5525 Barrel DC Jack |
| Boyut | 130mm x 120mm x 66mm |
| Çalışma Sıcaklığı | -20℃~65℃(25W Mode) -20℃~60℃(25W Mode) |
reComputer Super User Manual
What’s in the Box
- 1 x NVIDIA Jetson Orin NX 16GB Module
- 1 x reComputer Super J401 Carrier Board
- 1 x 128GB NVMe SSD

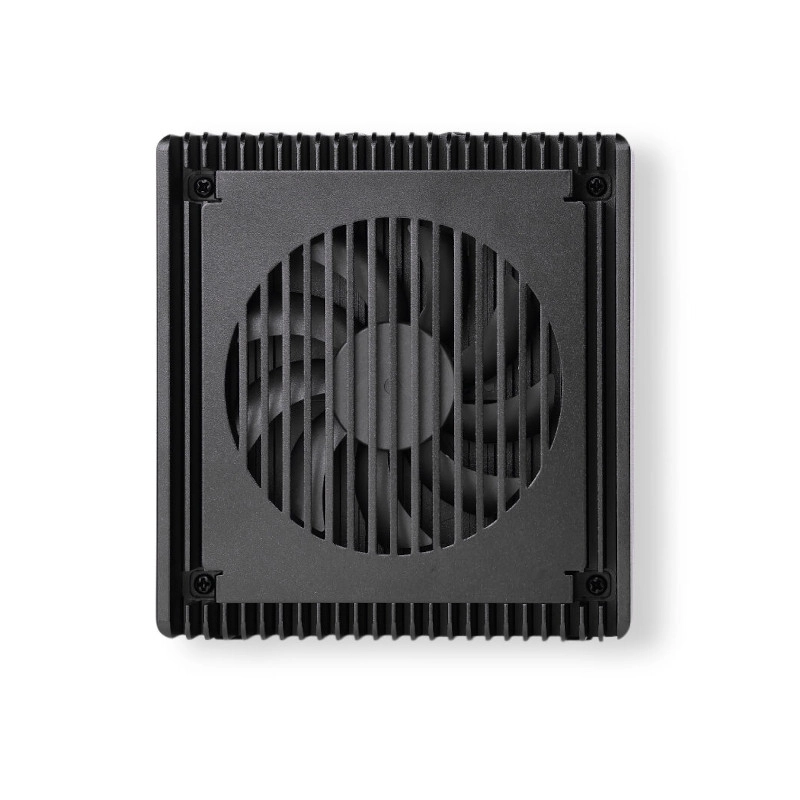

- 1 x Aluminum Heatsink with Fan
- 1 x Aluminum Enclosure
