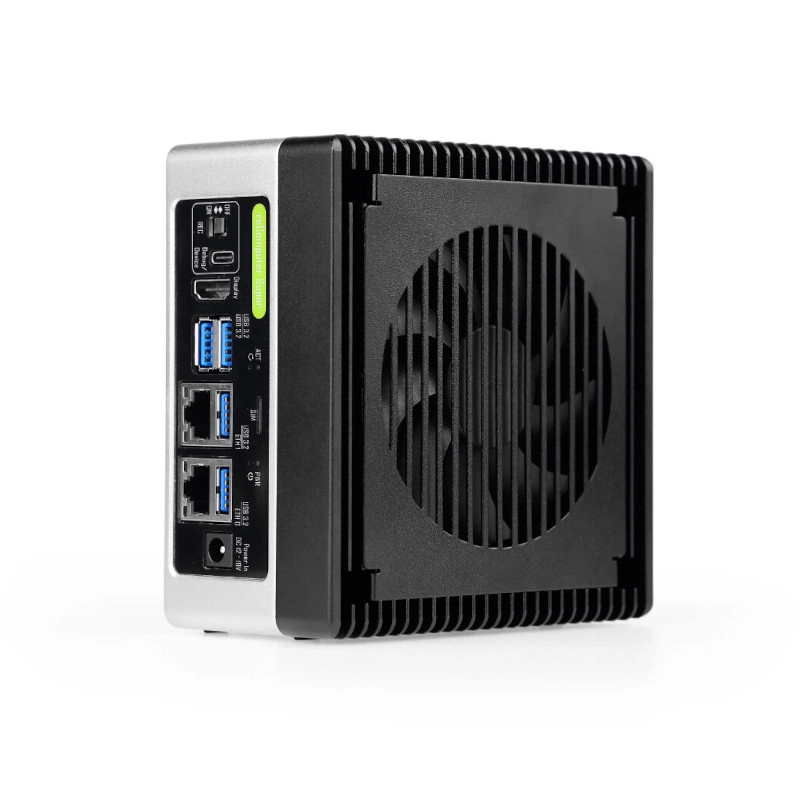

reComputer Super J4011 | NVIDIA Jetson Orin NX 8GB
Out of stock
SKU: 114110313
Categories: Boxed System, SEEED STUDIO Boxes
Tags: ReComputer Super, Seeed Studio AI Box
Description
reComputer Super J4011 is a powerful and flexible Edge AI system built on the NVIDIA® Jetson™ Orin™ NX 8GB module. It delivers up to 117 TOPS of AI performance in MAXN Super mode, providing a superior solution for video analytics, robotics, multimodal sensing, and generative AI applications.
Key Features
Super AI Performance: With 117 TOPS of processing power in MAXN Super mode, it delivers high performance in visual AI, robotics, and generative AI applications.
Energy Efficient Operation: Optimized performance and low energy consumption with adjustable power modes between 10W and 40W.
Durable Thermal Design: Reliable operation in challenging ambient temperatures between -20°C and 65°C.

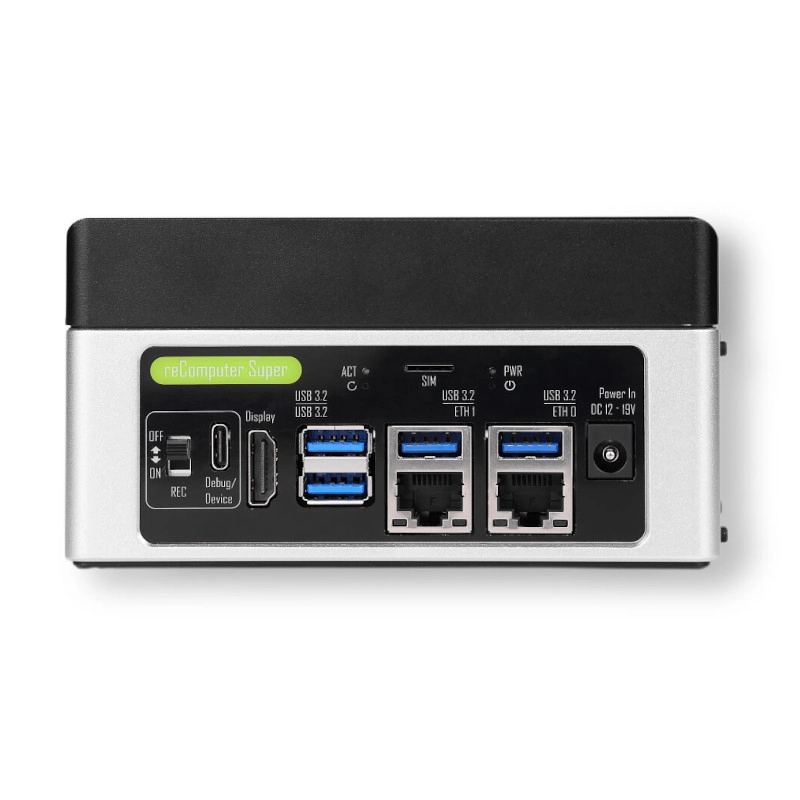

Rich Interfaces: Wide integration possibilities with 2xRJ45 Ethernet, SIM card slot, 4xUSB 3.2, HDMI 2.1, CAN, M.2 Key E/M, Mini-PCIe and 4xCSI camera connections.
With its superior performance and wide range of connectivity options, the reComputer Super J4011 offers reliable solutions in many fields, from autonomous mobile robots and smart retail to industrial automation and video analytics. Despite its compact size, its robust design, rich interfaces, and ready-to-use features make it an ideal Edge AI computer for both development and production.
Brand
Seeed Studio
Specifications
| Module Compatibility | Orin NX 8GB |
|---|---|
| AI Performance | Orin NX 8GB – 117 TOPS(MAXN) |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 68 GB/s (Orin Nano 8GB) |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
| M.2 Key M | 1x M.2 Key M (Connector supports 2280 NVMe SSD) |
| M.2 Key E | 1x M.2 Key E (Connector supports 2230 Wifi/Bluetooth) |
| Mini PCIe | 1x mini-PCIe for LTE 4G module |
| Network | 2x RJ-45 Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.2 Type A (5 Gbps) 1x USB 2.0 Type C (Device Mode/Debug) |
| Camera | 4x mipi CSI(2-lane 15-Pin) |
| Display | 1x HDMI 2.1 |
| Fan | 1x 4 Pin 1.25 mm Fan Connector (5V PWM) 1x 4 Pin 2.54 mm Fan Connector (12V PWM) |
| CAN | 1x CAN |
| Other Ports | 1x 40-Pin header 1x 12-Pin header (1x UART,1x Control) |
| RTC | 1 x RTC 2-pin, 1 x RTC socket |
| Power | 12-19V 5525 Barrel DC Jack |
| Dimensions | 130mm x 120mm x 66mm |
| Operating Temperature | -20℃~65℃(25W Mode) -20℃~60℃(25W Mode) |
reComputer Super User Manual
What’s in the Box
- 1 x NVIDIA Jetson Orin NX 8GB Module
- 1 x reComputer Super J401 Carrier Board
- 1 x 128GB NVMe SSD
- 1 x Aluminum Heatsink with Fan
- 1 x Aluminum Enclosure
