reComputer J4011 NVIDIA Jetson Orin NX 8GB
- Description
- Additional information
- Brand
- J4011 User Guide
- Jetson Orin NX User Guide
- Package Contents
Description
The reComputer J4011 is a compact, high-performance Edge AI device powered by the NVIDIA Jetson Orin NX 8GB module. Optimized for artificial intelligence applications, it delivers up to 70 TOPS of AI computing performance while maintaining low power consumption. The device offers a wide range of connectivity options, including four USB 3.2 ports, HDMI 2.1, Gigabit Ethernet, an M.2 Key E slot (for Wi-Fi), an M.2 Key M slot (for SSDs), two CSI camera interfaces, a CAN bus, and a 40-pin GPIO header.
Additional information
| Module Compatibilities | Orin NX 8GB |
|---|---|
| Camera Inputs | 2 x CSI (2-lane 15pin) |
| Video Output | HDMI |
| Ethernet | RJ45 connector for 10/100/1000BT Ethernet |
| USB | 1x USB 2.0 Type-C (Device Mode), 2x USB 3.2 Type A (10Gbps) |
| M.2 Key M | 1× M.2 Key M (2280 NVMe SSD support) |
| M.2 Key E | 1× M.2 Key E (2230 Wi-Fi/Bluetooth support) |
| FAN | 1x Fan Connector (5V PWM) |
| CAN | 1x CAN |
| Other I/O | 1x 12-Pin header (1x UART,1x Control), 1x 40-Pin header |
| Power | 9-19V DC |
| Dimension | 130 mm × 120 mm × 58.5 mm (including the packaging) |
| Operating Temperature | -10℃~60℃ |
Brand
Seeed Studio
J4011 User Guide
Jetson Orin NX User Guide
Package Contents
* 1 × NVIDIA Jetson Orin NX 8GB Module
* reComputer J401 Carrier Board
* 128GB NVMe SSD

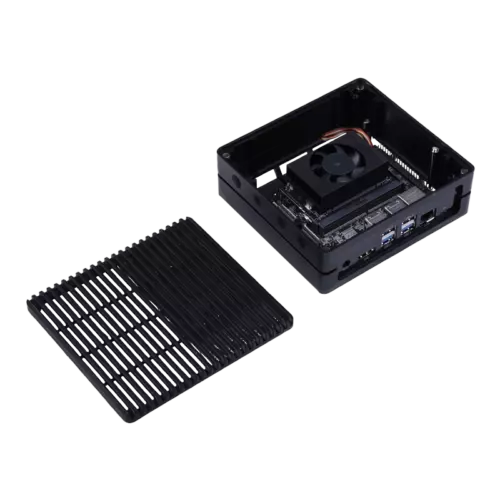

* 1 × Aluminum Heatsink with Cooling Fan
* 1 × Aluminum Enclosure

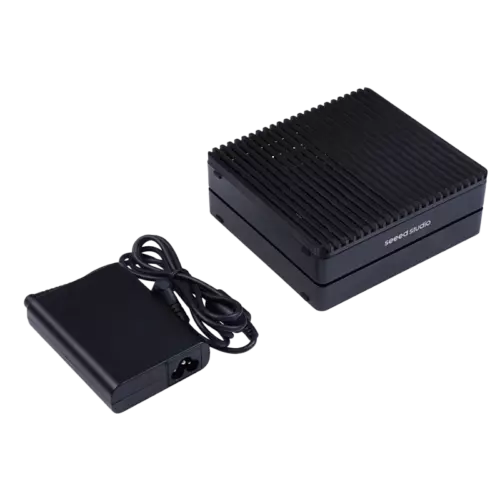

* 1 × 12V/5A Power Adapter
